HVAC Control Valves: Understanding Key Components and Their Importance
Control valves are an integral part of any heating, ventilation, and air conditioning (HVAC) system, serving as crucial components that enhance system performance. They are often taken for granted, but in reality, without them, you cannot effectively control the amount or temperature of the supplied air or liquids. In addition, they also help conserve energy and contribute towards the systems’ dependability and the inhabitants’ comfort.
This article will deep-dive into the elements of an HVAC control valve, explain its working, significance, and benefits, and provide insight into its relevance and how this component can benefit a system by promoting equilibrium and effectiveness.

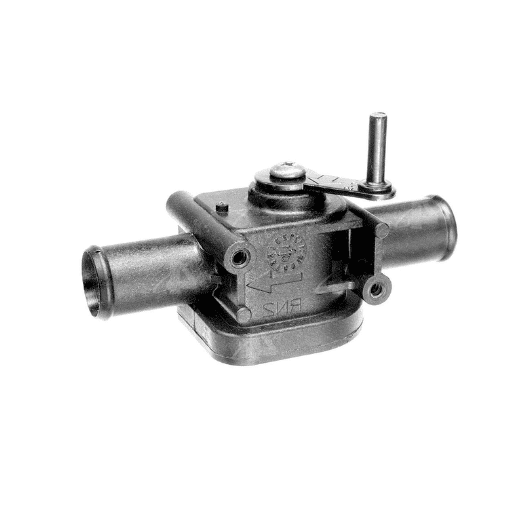

Introduction to HVAC Control Valves
The flow of fluids, specifically water or steam, with respect to heating, ventilation, and air conditioning systems, is directed using HVAC control valves. These valves control the flow of fluids to achieve the required system temperature and ensure proper operation. This is because they help achieve the correct temperatures, improve efficiency, and preserve occupants’ comfort.
What are HVAC Control Valves?
HVAC control valves are mechanical devices used to control fluid and air flow in heating, ventilation, and air conditioning systems to safeguard temperature control, energy efficiency, and system performance.
The Importance of Control Valves in HVAC Systems
HVAC control valves are fundamental to the proper operation of HVAC systems because they ensure optimal system performance and the desired temperatures within a space. This is achieved by controlling refrigerants, water, or air in the system, allowing specific adjustments to temperature and pressure. Such measures enhance the system’s energy efficiency, reduce operating costs, and prolong the lifespan of the appliances.
Key Benefits of HVAC Control Valves
✓ Potential to Save Energy
Control valves help manage the flow of energy and, as a result, reduce the overall energy use of HVAC systems, leading to lower expenses and carbon dioxide emissions.
✓ Systems Performance Enhancement
In heating and cooling processes, control valves regulate and ensure the system’s supply of heat or air conditioning meets its design purpose and provides comfort to all areas being conditioned.
✓ Controlling and Maintaining Exact Temperature
These valves improve temperature control, enabling precise temperature control without responding to disturbances or deviations from limits.
✓ Longer Lifetime of Devices
A control valve is essential in a system as it will not only control the flow, but it will also protect other system devices such as pumps and compressors by reducing their throughput, which will minimize wear and tear.
✓ Varied Capabilities
HVAC control valves come in different forms and through various mechanisms; it is common to see simple two-way valves, three-way valves and pressure independent valves within the same plant achieving different needs under one or more applications.
The proper use of high-quality control valves increases the efficiency of HVAC systems and reduces energy costs during operation.
Overview of Common HVAC Valve Types
HVAC systems include various types of valves to manage different fluids, facilitating effective system operation, increasing operational efficiency, and reducing heat loss. Below are the most widely used types of HVAC control valves:
Recent Advancements and Performance Statistics
The development of HVAC valves in recent years has focused on greater energy efficiency and system durability. According to industry analysis from 2023, pressure-independent valves can save up to 30 percent of energy consumption in HVAC systems without sacrificing comfort in most office spaces.
Modern valves now feature smart motorized actuators with integrated IoT capabilities which provide real-time monitoring and enable predictive maintenance.
Types of HVAC Control Valves
In heating, ventilation, and air conditioning systems, the HVAC control valve manages the flow of liquids, water, or refrigerant. These devices ensure the correct amount of fluid is delivered to various components to maintain the system’s temperature. The following are the main types of control valves used in HVAC systems:
1. 2-Way Control Valves
2-way control valves have an inlet and an outlet and allow fluid to flow in a single direction. These are used in most VAV systems for precise temperature control and help to control the volume of fluid in the HVAC unit. These valves help save energy by allowing adjustment to supply needs, avoiding constant-flow pumping.
Features and Functions:
- Used in chilled water systems or heating water systems
- Usually constructed out of durable materials, for example, stainless steel or brass
- Variable flow systems are known to help save energy up to 20%, according to energy-saving reports from manufacturers
2. Three-Way Control Valves
Three-port control valves can be classified as either mixing valves, which combine two fluid streams, or diverting valves, which divide one fluid stream into two streams. Such control valves are suitable for applications with a fixed amount of flow like those in chillers or boilers. Typically, they provide maximum regulation of discharge temperatures and flow rates.
Particulars and Utilizations:
- Suitable for processes that mix fluids and/or require bypasses
- Bodies may be made of brass, stainless steel, and iron materials
- Can be used in HVAC applications with open and closed loop circulation systems
3. Pressure Independent Control Valves (PICVs)
PICV valves reduce the workload of traditional control, balancing and differential pressure valves, therefore optimizing system operation. These valves can automatically regulate to maintain constant flow and promote energy efficiency, regardless of system pressure variations.
Benefits and Results:
- Decreases the time taken for system commissioning by about 35%
- Used in smart buildings because of IoT readiness
- Achieves precise temperature control for heating or cooling occupied areas
4. Globe Valves
Globe valves are used in HVAC control valve applications that require continuous flow adjustment. They are apt in systems requiring throttling and higher pressures.
Salient Features:
- Good capability to shut off
- Sizes available from ½” to 12″ in standard conditions
- Employed in offices, industrial plants and district cooling plants
5. Butterfly Valves
Butterfly valves use a disk that rotates to vary the orifice size in the pipe. These valves have a wide range of applications and perform well at higher flow rates, making them desirable in central air conditioning plants and cooling towers.
Key Components:
- Permits the use of large diameter piping systems (up to 48 inches or larger)
- Inexpensive; small in weight and size when compared to other valves
- Minimal pressure loss allows efficient operation
New Developments Concerning HVAC Control Valves
Control valves are now incorporating advanced features that enable unified protocols for building management systems. Adaptive Pressure Independence Control Valves represent modern simplifications for centralized HVAC systems.
According to studies, these systems’ efficiency can be increased by 25% when compared to traditional valves. More sophisticated IoT-based solutions will most definitely be at the core of future HVAC control valve development.
Ball Valves: Function and Applications
Ball valves in HVAC control systems are valves that rotate horizontally in quarters to control the flow of gases or liquids. They are designed to provide zero leakage during opening and closing, which makes them very useful everywhere. Below are the five most crucial aspects of ball valves and their uses:
| Feature | Description |
|---|---|
| Durable and Dependable | Ball valves are highly reliable and durable throughout their use. This enables them to be effectively applied in high-pressure and temperature zones without any reduction in function. |
| Seamless and Leak-Proof | Ball valves have ball seating ability that does not allow leakages, making them work well with applications where leakages should never occur, such as gas pipelines and chemical processes. |
| Minimal Maintenance Needs | Maintenance for ball valves is low, as these have few moving parts and a simple structure, thereby decreasing operational costs in the long run. |
| High Fabrication Options | A ball valve comes in a variety of materials like stainless steel, brass, or plastic, making it applicable in different environments such as corrosive or very high temperature ones. |
| Versatile Applications | Ball valves are used in many application areas, ranging from water treatment plants and oil & gas to HVAC systems and the pharmaceutical industry. |
It is for these attributes and numerous applications that ball valves are an essential part in most technologies that need to control flows effectively and efficiently.
Butterfly Valves: Key Features and Benefits
1. Compact Design
The basic design of butterfly valves is straightforward, making them compact and lightweight—characteristics appreciated for installations with space limitations. With a streamlined design, the weight on the piping system is also reduced.
2. Affordable Option
Butterfly valves are economical compared to other types of valves both in terms of purchasing and installation as well as servicing and repair, making them extremely cost-friendly for many operations.
3. Rapid Control
The valve is effortless to operate with a quarter-turn system, and the procedure’s speed is linked to the system’s efficiency.
4. Wide Size Range
These valves are available in a wide range of sizes, from minor to large-scale systems, enabling higher flow rates with HVAC control valves.
5. Corrosion Resistance
Because butterfly valves are made of rust-resistant materials, such as stainless steel, PTFE, or polymers, they are commonly used in transportation or for handling corrosive fluids and operating under tough environmental conditions.
The most important criterion for selecting an HVAC control valve is the pipe size and diameter, as well as the characteristics of the fluids and gases inside the pipes.
Heater Control Valves: Specific Uses in Heating Systems
One of the widely accepted options for effectively controlling the interior temperature of any heating system is heater control valves. Thanks to these valves, users can maintain precise temperature control, reduce system operating costs, and improve the efficiency of all heating equipment. Here are key examples of heater control valve usage:
- 1
Automobile Air Conditioning and Heating System: The purpose of heater control valves in most automobiles is to maintain a comfortable cabin temperature by controlling the amount of hot radiator water that enters the heater core. - 2
Industrial Process Heating: In these processes, such valves regulate heat-transfer fluids to control temperature conditions that must be precisely maintained for the production of chemicals, plastics, or food products. - 3
Heat Distribution Systems: In residential or commercial central heating systems, heater control valves play a crucial role by making hot water/steam flow to radiators, underfloor heating or any other forms of heat emitters. - 4
HVAC Systems: The work of an HVAC control valve in this context primarily occurs in the hot or chilled water system, which forms the heat-exchange network of the system. They are used to modulate the flow of heated water or air, primarily to provide thermal comfort in households and commercial and industrial buildings. - 5
Solar Thermal Systems: Heater controllers are essential functional elements in solar thermal systems, as they enable the proper transport of working fluids from solar collectors to storage tanks or the load, thereby assisting the heat-saving process.
Functions of Control Valves in HVAC Systems
Control valves in commercial HVAC equipment are crucial devices that enhance comfort, reduce operational costs, optimize power utilization, and more. The primary key functions performed by control valves in HVAC equipment are provided as follows:
⚙️ Adjusting Fluid Flow
Control valves can adjust the flow of water or air in systems and deliver precise amounts of fluid required for comfort and operating conditions.
🌡️ Temperature Proficiency
The purpose of control valves is to minimize or maximize water or air inflow to meet system requirements, thereby automatically controlling temperature.
📊 Pressure Regulation
Control valves play a key role in ensuring proper operating pressures in systems to avert under- or overpressures that may cause damage.
💡 Energy Effectiveness
To optimize resource utilization, control valves minimize energy waste by ensuring only the appropriate amount of fluid is used, reducing operating costs and improving system sustainability.
🏢 Zoning and Isolation
There are zoning control valves that allow HVAC systems to heat or cool separate parts of building zones as needed. Sections can be shut off to save energy or facilitate maintenance.
Regulating Flow and Pressure in HVAC Systems
Controlling the flow and pressure of HVAC systems is aimed at reaching maximum performance, reducing energy consumption, while ensuring comfort for people in buildings. Businesses rely on control valves in managing the distribution of fluids and pressure within an HVAC system. Consequently, effective regulation of the system also helps maintain optimal HVAC operation, prevents parts from being overburdened, and extends equipment life.
Why Regulation of Flow and Pressure is Necessary
With flow controllers in an HVAC system—air conditioners, blowers, evaporators, condenser units or radiators—appropriate quantities of fluid are controlled for each functional unit. According to recent research, HVAC efficiency may decline by up to 70% due to poor flow control, leading to higher energy use and higher bills. In terms of pressure, it protects the system by ensuring it operates within certain safety limits to avoid rupturing pipes, pumps and other critical factors.
Advanced HVAC Control Valve and Flow/Pressure Enhancement Techniques
With technological advancements, contemporary systems equipped with intelligent sensors and IoT-based devices can simultaneously monitor and optimize flow and pressure. Innovations that have been developed within such applications include the following:
| Technology | Description | Benefit |
|---|---|---|
| Smart Flow Valves | These types of valves incorporate sensors that measure and regulate flowing current within desirable levels and automatically compensate for changes in load occurring from time to time. | Automatic adjustment to maintain optimal flow |
| Variable Speed Drives | If there are any pumps or fans connected to the system, variable-speed drives regulate the motor speed to maintain adequate pressure and flow. | Energy consumption savings of around 20-50% |
| Building Automation Systems (BAS) | Such systems have the advantage of centralized control of every element within the system, modification of the system parameters, and more robust response to consumer demands on a real-time basis. | Real-time monitoring and optimization |
Advantages of Regulation Supported by Numbers
For HVAC systems in the industry with enhanced flow and/or pressure control, advanced capacity control has been shown to result in the following:
30%
Energy Saving
Reduction by not overloading the system with flow and pressure elements that exceed necessary values
40%
Reduced Wear and Tear
Proper regulation diminishes strain on pumps and mechanical parts, extending equipment lifespan
25%
Increased Comfort
Higher satisfaction of occupants in commercial buildings due to consistent temperature and airflow
The application of flow and pressure control is an integral part of the challenge to provide sustainable, economical and effective systems that utilize HVAC equipment along with contemporary developments.
Maintaining Temperature Control
The HVAC control valve plays a crucial role in maintaining temperature control throughout different parts of the system. This is essential for both air conditioning and heating applications. The comfort levels within working areas depend primarily on the control systems within the HVAC system. Various types of control systems are identified and designed in response to specific requirements. When designing industries and assembling technical processes within them, control systems play a crucial role in enhancing productivity by improving comfort levels in working spaces.
Advanced Zoning Systems
Advanced zoning systems, specifically designed for regulated temperature distribution within separate building zones, are becoming increasingly popular. For example, research indicates that demand-controlled ventilation (DCV) may reduce energy use for heating, ventilation, and air conditioning systems by up to 40% by managing airflow where necessary.
Findings from research and prominent stakeholders show that stable temperature management does not affect energy use alone but also indoor air quality, which in turn improves occupant health and activity levels. All these, coupled with conventional HVAC control valve methods, ensure efficient and effective temperature management.
Zone Control and Its Importance
The term ‘zone control’ or ‘zoned control’ in an HVAC system describes the ability to heat and cool selected building areas or ‘zones’ selectively. The method provides unprecedented levels of comfort, energy savings, and control, allowing particular rooms or areas to be heated or cooled exactly as they should be.
💡 Did you know? According to the U.S. Department of Energy, the use of zone-control heating, ventilation, and air-conditioning systems can reduce power consumption by up to 3 times across different sections of buildings, significantly lowering utility bills.
How Zone Control Works
Zone control uses dampers in ducts and smart thermostats to direct air to the necessary rooms. During the heating season in a building with several floors, air is channeled to the upper floors, which are more heat-prone. Such practice enhances comfort and eliminates the disadvantages of changing the temperature of the entire building.
Technological Advancements in Zone Control
The technological advancements in the field of zone control, including the deployment of IoT (Internet of Things) solutions, has contributed significantly to enhancing energy optimization. These mechanisms include real-time data collection and the use of occupancy sensors to configure settings based on room usage.
Research Finding: Studies indicate that a zone control system can significantly reduce HVAC usage by approximately 20 percent over a conventional system when rooms remain unused.
It is generally accepted that zone control is essential for reducing costs sustainably. Whether it is a house, an office or an industry, zone control is utilized in such a way that the heating and cooling systems are economical and worthwhile to building occupants. Artificial intelligence capabilities are expected to improve and change the way systems are controlled by zones, making them more ‘smart’ and broadening their usefulness in the future.
Choosing the Right Control Valve for Your HVAC Application
It is of vital importance that the control valve you select for your HVAC system is right for the purpose because its usage directly affects the performance of the system, the accuracy of temperature regulation and the lifespan of the system. In most cases, the control valves ensure that the required amount of heat or cold is provided. The following considerations and data may assist you in the selection process:
1. Type of Valve and Its Use
The different types of control valves include two-way, three-way, and pressure independent (PICV) control valves. In recent industry trends, PICVs have gained popularity for saving up to 30% in energy compared to standard valve installations, as the flow is always consistent. Choose the valve that suits the needs of your HVAC system, for example, if there is need for pressure or flow alterations.
2. Capacity and Flow Coefficient (Cv Rating)
Flow Coefficient or Cv Rating of a control valve is a significant parameter that engineers should understand prior to actual control valve selection or sizing. The Cv has been defined as the amount of water that can pass through a control valve at a given pressure differential, typically 1 psi. Proper selection of a valve with the desired flow capacity avoids performance issues like overflow and underflow. The American Society of Heating, Refrigerating, and Air-Conditioning Engineers (ASHRAE) recommends matching the system flow rate requirements to the Cv of the control valve.
3. System Compatibility
It is imperative that the material from which a valve is made, its size, and the connections available on the valve match the design of the HVAC system in use. Over the years, development of durable materials, such as stainless steel resistant to corrosion, has improved reliability of valves widely applied in both home and industrial installations. As an example, stainless steel ball valves are suitable for installations where humidity levels are high or adverse environmental conditions are present.
4. Automation and Smart Features
Smart HVAC and Internet of Things integration is one reason control valves now offer options such as Bluetooth and integrated sensors. In a 2023 industry report, it was stated that energy consumption reduced by 25% on average in large buildings where systems with smart control valves have been implemented. The valves can automatically adjust the flow of the medium as required, maximizing accuracy and minimizing energy use.
5. Costs and Maintenance
While the initial investments on control valves can vary and bear stress on financial matters, one must consider the more extended benefits and ease of maintenance. Consider PICVs as an example. These devices, as a rule, cost more initially, although they require very little care after installation; therefore, the total cost of ownership is reduced considerably. Research indicates that the use of easy-to-maintain and durable valves would be able to reduce operating costs for medium-sized commercial properties by approximately one thousand dollars every year.
6. Environmental Impact
Many have become conscious of sustainability in HVAC operations. Ensure that the control valves enable eco-friendly operation that limits energy and emissions. The U.S. Department of Energy states that replacing HVAC systems with current, energy-efficient valves could reduce a facility’s carbon output by 15%.
With these considerations and the new global trends in HVAC control valves, it is possible to achieve maximum energy efficiency with the HVAC system while achieving both environmental and economic objectives.
Factors to Consider in Valve Selection
It is imperative to ensure you have selected appropriate control valves for the HVAC system so its performance and energy consumption remain effective. Here are five essential aspects to pay attention to:
| Factor | Description |
|---|---|
| Type and Purpose of Valve | Depending on the use, globe, ball, or butterfly valves shall be used. From the perspective of proper flow control, pressure maintenance, and system durability, they offer distinct advantages. |
| Flow Rate Characteristics | Necessary to understand what the flow characteristics of a particular valve are—for instance, linear, equal percentage, or quick opening—to consider such a valve fit for the system’s flow control application. This helps in effective control and energy consumption. |
| Material Suitability | The valve body material should be suitable for the medium, whether liquid or gas. As an illustration, where there is a presence of corrosive fluids, stainless steel shall be used, whereas under normal conditions, cast iron shall suffice. |
| Pressure and Temperature Ratings | Be sure the valve you picked can handle the maximum pressure and temperature of your system. Exceeding its ratings will overload the valve and cause system downtime. |
| Energy Saving and Automation | Modern valves use high-service devices, such as positioners or actuators, to improve energy efficiency. IoT-enhanced versions enable large-scale, proactive reduction in energy use, including monitoring energy consumption. |
With these parameters and careful consideration, it is possible to choose the most suitable and sustainable alternative for the existing HVAC control valve system.
Evaluating Different Models and Products
There are many HVAC control valve models, sizes, materials, and features available in the market. Below is a set of five models that excel in control efficiency, structural reliability, and cutting-edge automation features:
Thus, a thorough review and comparison of these control valve types shall enable an individual to select an HVAC control valve that meets their requirements and delivers optimal performance in operation.
Typical Applications and Best Practices
📋 Application: Control Valves for HVAC Systems
Description: Within the domain of HVAC control valves, control of flow as well as temperatures is of vital importance, especially within residential structures.
Recommendation: Ensure that valves remain tight; carry out periodic checks and replacements as necessary to avoid unnecessary energy waste and leaks.
🏭 Manufacturing Processes
Description: Control systems are made for industrial constructions and considered for precise management of mechanisms, for example, for fluid control in chemical processing or energy production.
Recommendation: In the event of aggressive atmospheric conditions, materials capable of withstanding harsh conditions should be used while ensuring operations remain economical.
💧 Irrigation Development
Description: Owing to the possibility of using control valves to regulate flow, some water supply systems comprise irrigation systems.
Recommendation: Employ valve automation for the correct distribution of water and reduce waste due to excess water supply.
🔧 HVAC Maintenance
Description: To prevent blockages and air conditioning failures, HVAC systems are routinely maintained and valves adjusted as necessary.
Recommendation: To avoid system failure, worn-out valves need to be replaced to prevent repairs to heating and cooling control valve components.
🌞 Thermal Plants & Hydro Power Facilities
Description: Valves operate various systems, including solar thermal plants and hydro power stations, ensuring that all functional parameters necessary for their operation are maintained, such as pressure and flow.
Recommendation: Use environmentally friendly valve systems and energy audit practices to improve system longevity.
🏢 Energy Efficiency in Commercial Office Buildings
Description: Most major commercial office developments use control valves for AHUs, FCUs, and other equipment to optimize HVAC systems.
Recommendation: Making use of innovative technology, such as HVAC control valve IoT systems is advisable and provides real-time energy savings.
💡 Recommendations for HVAC Professionals
For technicians to be more effective, execute their duties while considering environmental conservation, and manage their systems accordingly, several key factors should be considered:
1. Use Smarter Devices
More energy-efficient solutions are achieved by combining newer technologies, including enhanced HVAC control valves with building systems. Advanced control technology reduces operational costs in buildings—recent examples show that automated equipment can reduce energy usage by up to 30%.
The introduction of real-time monitoring detects maintenance needs earlier, rather than waiting until the equipment fails, thereby also extending the components’ life cycle.
2. Conduct Energy Audits First
Perform energy assessments aimed at evaluating how effective HVAC measures are. For example, the US Department of Energy reports that energy-saving measures during equipment optimization can save up to 20%.
Apart from these audits, energy-saving studies also help to identify equipment that is either worn out or oversized for the purpose, and encourage the use of more efficient models.
3. Adopt Green Methods
Reliable energy conservation is achieved through sustainable design and installation of environmentally sound technologies. Green valve designs and refrigerant recycling align with international sustainability initiatives.
Based on the 2023 Global HVAC Market Report, making use of green technologies helps in reducing carbon emissions by as much as forty (40) percent. Additionally, installing energy recovery systems helps recycle a plant’s waste heat, thereby improving its performance.
4. Keep Track of Regulations and Standards
Conform to emerging energy requirements and policy regulations to avoid being penalized and promote environmentally friendly practices.
To illustrate, the International Energy Agency (IEA) has noted that HVAC specialists will need to brace for more stringent regulations, such as the Kigali Amendment, which aims to reduce high-GWP refrigerants.
5. Training and Development are Necessary
Continuous education ensures that the HVAC service workforce stays abreast of the latest technological developments and best practices.
According to recent reports, organizations that compensate their employees for participating in training programs have up to 15% more operational efficiency and commit fewer errors related to system control.
Applying these approaches will help specialists in HVAC regulating systems operate much more efficiently and sustainably while avoiding depreciation in market value. The incorporation of modern technologies or environmentally sustainable methods is beneficial for nature and businesses alike, as it ensures long-term savings.
Practical Advice for Selecting and Maintaining Control Valves
One of the critical factors in a good HVAC system is the control valves; their sizing and selection are crucial to the performance of the HVAC equipment. When the correct valve is chosen, the system flow can be well controlled, energy use can be reduced and the life of the equipment is increased. The following section outlines key pointers and steps based on current best practice for valve selection and application:
🔍 1. Valve Selection Considerations
Type of Valve
As a designer, one needs to specify the system’s performance requirements, which will drive the selection of valves such as globe, ball, butterfly, etc. For example, with respect to flow control, if absolute accuracy is required, it is most likely best to use globe valves; on the other hand, ball valves are better suited to applications where the flow is only on or off.
Valve Sizing
Large valves will lead to unnecessary costs and poor control, while smaller ones may limit system efficiency. Always use the manufacturer’s sizing guides and software to size the valve according to the system flow rates.
💡 Study Finding: With the valve size matching the system, studies indicate that the efficiency of the operation may be enhanced by as much as 20 percent.
Material Compatibility
One should choose valves made from a material that can withstand the type of fluid in the system (e.g., brass, stainless steel, PVC). The corrosion-resistant properties of a material make valves stronger and better able to withstand high-temperature, high-pressure service.
⚡ 2. Energy Efficiency Concerns
Research studies of HVAC control valve systems show that there can be as much as a 30% energy reduction in some applications due to the use of PICVs (pressure-independent control valves). Such valves have the advantage of maintaining flow at a constant level regardless of system pressure variations.
The leakage and effective sealing capability of the valves are other features that should be checked during selection. Reducing operational costs while maximizing system performance is possible with high-performance, energy-saving valves.
🔧 3. Maintenance and Servicing Guidelines
Regular Inspection
Prepare a timetable for regular inspections of the unit’s leakage, flow, and seal status. It has been observed that approximately 35% of valves can fail due to improper operational conditions resulting from lack of isolated shutdown or maintenance.
Cleaning
Any debris or buildup should be removed regularly to prevent clogs or faults. Contaminants may enter the system, damage interior components, and reduce valve efficiency.
Actuator Maintenance
In the event of a malfunction, it is necessary to inspect and adjust the actuator’s mounting. Inoperable actuators may cause the valve to lock or leak, rendering it ineffective.
📱 4. Leveraging Smart Technologies
In recent years, HVAC system development has seen rapid growth in smart control valves that have IoT connectivity. Such valves capture and display the current equipment state, helping the operator foresee a breakdown and adjust system parameters more efficiently without being in the vicinity.
📊 Research Finding: Papers on this issue inform that advanced HVAC valve designs can cut losses due to interruptions by 40% and increase HVACs’ endurance by 15% to 20%.
Given these hands-on guides and a conscious use of state-of-the-art equipment, HVAC practice can see improvements in management, costs, and sustainability over time. The choice of high-quality HVAC control valves and their proper maintenance are insurance against the loss of both efficiency and investment.
Final Thoughts on the Importance of Control Valves in HVAC
Automated regulation fittings, known as control valves, play a significant role in any HVAC system. As a result, investment in high-grade valves and proper service will not only maximize system efficiency but also dramatically reduce operational costs and extend equipment lifespan.
By focusing on such elements, HVAC solutions can be more innovative and more sustainable, benefiting the environment and building occupants while ensuring long-term cost savings and system reliability.
References
📚 Taylor & Francis
Title: HVAC Control Systems: Modelling, Analysis, and Design
URL: Taylor & Francis – HVAC Control Systems
Description: This book provides a comprehensive overview of HVAC control systems, including the role of control valves in system design and operation.
📖 Google Books
Title: Fundamentals of HVAC Control Systems: SI Edition
URL: Google Books – Fundamentals of HVAC Control Systems
Description: This book discusses the fundamentals of HVAC systems, including the use of control valves for regulating flow and temperature.
🔬 ScienceDirect
Title: Review of Modeling Methods for HVAC Systems
URL: ScienceDirect – Review of Modeling Methods for HVAC Systems
Description: This article reviews various modeling methods for HVAC systems, highlighting the role of valves in controlling water and refrigerant flow.
❓ Frequently Asked Questions (FAQ)
What is an HVAC control valve, and how does it work?
An HVAC control valve is an essential part of the heating, ventilation, and air conditioning system. It manages the conveyance of water or air and distributes needed amounts of conditioned air to specific areas. As the valve in the system is adjusted, the system maintains adequate indoor temperature control without excessive heating or cooling.
What are the different types of HVAC valves?
There are numerous categories of HVAC valves, including ball valves, butterfly valves, and control valves. Ball valves are used for quick closure and allow almost no gap between the seal and the opening. Butterfly valves have a sleek design and are used mainly for flow adjustment. Control valves are designed so that flow changes with demand.
How should I choose the appropriate HVAC control valve for my system?
When choosing an appropriate HVAC control valve, several parameters must be considered, including the fluid to be contained (air or water), the flow rate, and the system pressure conditions. Consideration should be given to the requirement of zone control and whether a manual or an automatic valve would be needed. HVAC experts are best suited to answer these questions.
What role does a heater control valve perform in an HVAC system?
The heater control valve plays a crucial role in automobile HVAC systems—controlling the flow of hot coolant from the engine to the heater core. This helps independently control the car’s temperature, thereby enhancing passenger comfort. Adjusting this valve adjusts the heating volume based on the passenger’s request.
What type of maintenance do HVAC valves require?
All HVAC control valve elements must be well-maintained to ensure proper operation and extend their service life. This involves leak and functional testing, as well as cleaning any particles that can impede valve operation. The seals need to be inspected, and worn-out ones replaced, to prevent breakdown or wear of any part of the system.
What are the safety considerations when working with HVAC control valves?
When working with HVAC control valves, safety measures must be implemented. Ensure that no maintenance is carried out on any pressure system while it is still in operation. All maintenance work should be done while wearing protective clothing to avoid injuries. Furthermore, being conversant with each type of valve and how they work is essential when performing repairs, as it helps prevent unforeseen accidents.
What should I do if my HVAC control valve is malfunctioning?
Usually, when an HVAC control valve is problematic, the causes include poor flow, strange noises, or leaks. A valve that fails to seal properly may require adjustment, while in extreme cases an entirely new valve may be required. If the HVAC system is not maintaining the recommended temperature, it might be because the valve controls were changed or because there is an issue with the infrastructure. The manufacturer’s guidelines can guide one through.
What distinguishes automatic HVAC control valves from manual ones?
Essentially, automatic HVAC control valves adjust flow rates in real time based on system feedback, providing a proactive response to temperature fluctuations or demands. Manual valves, on the other hand, require user intervention to physically change flow settings. Automatic valves are preferred for convenience and efficiency, while manual valves can be utilized in simple systems.
Are there different HVAC valves for residential and commercial applications?
Yes, there are different types of valves for HVAC control systems, which are used in residences and commercial buildings. The range of the valves varies, and the controller’s size changes accordingly. In commercial buildings, where systems are generally of larger scope and design, it may be necessary to use larger sizes and more elaborate valves due to higher flow and pressure conditions. In contrast, small, simple valves work well for residential applications.
