Object Tilt Monitor – Intelligent Structural Safety MonitoringHigh-Precision 3-Axis Tilt Monitoring & Real-Time Early Warning
Designed for communication towers and other fixed structures, the Object Tilt Monitor continuously tracks X, Y, and Z-axis tilt, detects subtle structural displacement and settlement, and identifies developing safety risks that conventional inspections may miss. With intelligent vibration filtering, 4G Cat.1/RS485 connectivity, IP68 protection, and automated alerts, it enables reliable 24/7 unattended monitoring in demanding outdoor environments.

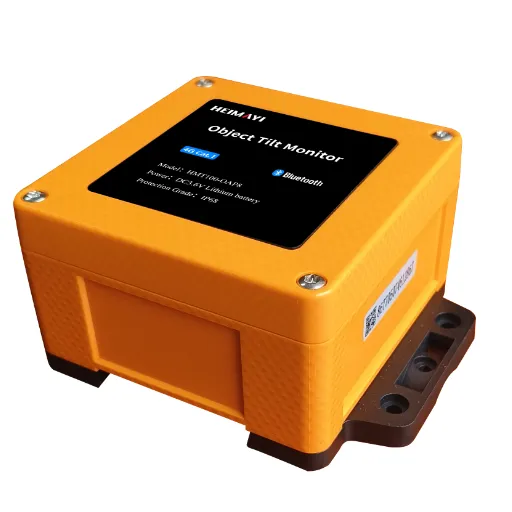

Product Overview About Object Tilt Monitor
The Object Tilt Monitor provides continuous, high-precision monitoring of structural tilt and displacement. Using three-axis sensing, intelligent filtering, and remote data transmission, it helps identify subtle changes in communication towers before they develop into more serious structural risks.
The Object Tilt Monitor continuously measures tilt across the X, Y, and Z axes to determine both the direction and angle of structural movement. Measurement accuracy reaches ±0.1° on the X and Y axes and ±0.5° on the Z axis, allowing subtle tilt and settlement that may be difficult to identify through visual inspection to be detected.
Built-in wind-vibration filtering, temperature-drift compensation, and steady-state determination algorithms help distinguish temporary tower movement caused by wind from persistent structural tilt. This reduces interference and supports more reliable early detection of abnormal structural changes.
Monitoring data can be transmitted through 4G Cat.1 wireless communication or an RS485 bus to the monitoring platform. Offline data caching and automatic retransmission after network recovery help maintain monitoring continuity at remote or unattended tower sites.
The cloud monitoring platform automatically collects tilt data, generates deformation curves, analyzes tilt trends, and determines potential risk levels. Alerts can be delivered through the computer platform, mobile mini program, and SMS, supporting 24/7 unattended structural monitoring and timely response.

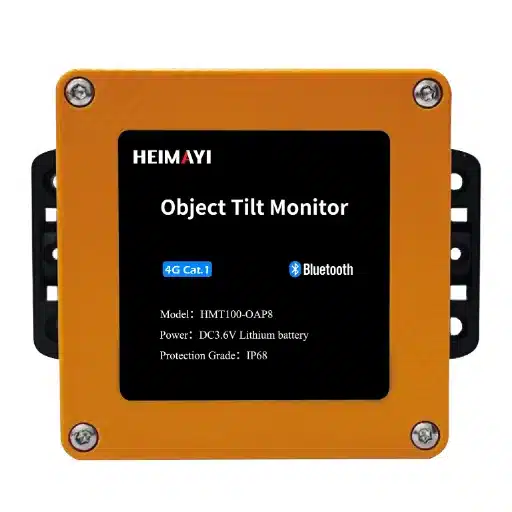

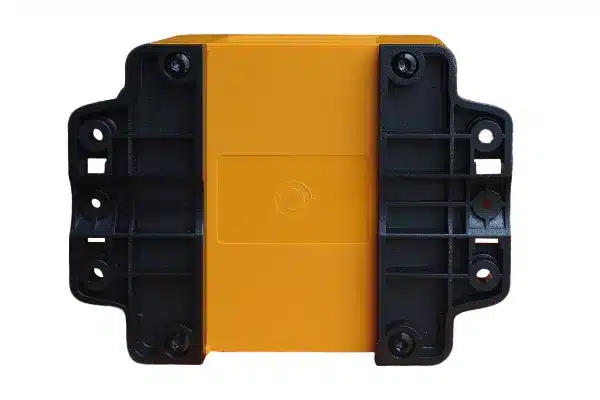

Our Object Tilt Monitor
Designed for continuous structural safety monitoring, the Object Tilt Monitor combines high-precision three-axis sensing, intelligent interference filtering, and reliable remote communication for communication towers and other fixed structures.

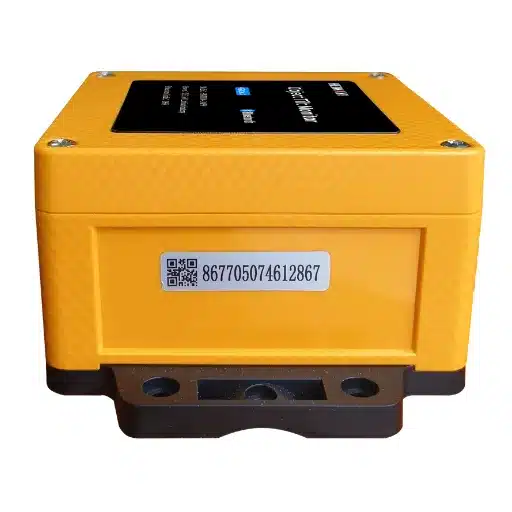

High-Precision 3-Axis Object Tilt Monitor
Advantages of Object Tilt Monitor
Engineered for long-term structural safety monitoring, the Object Tilt Monitor combines high-precision three-axis measurement, intelligent interference filtering, reliable communication, and rugged outdoor protection to detect developing tilt risks before they become critical.
Detailed Technical Specifications
| Category | Object Tilt Monitor Specification |
|---|---|
| Measurement Accuracy | X/Y Axis: ±0.1°; Z Axis: ±0.5° |
| Monitoring Axes | X, Y, Z — Three-Axis Monitoring |
| Monitoring Data | Tilt Angle, Tilt Direction & Tilt Change Rate |
| Intelligent Algorithms | Wind Vibration Filtering, Temperature Drift Compensation & Steady-State Determination |
| Protection Rating | IP68 |
| Housing Material | Flame-Retardant PC Housing |
| Power Supply | Wired Power Supply; Battery Power Supported |
| Communication | 4G Cat.1 / RS485 |
| Local Communication | Bluetooth |
| Installation Method | Galvanized Stainless-Steel Clamp Mounting |
| Alarm Threshold | Customizable |
| Operating Temperature | -40°C to +85°C |
| Anti-Interference | Designed to Resist Electromagnetic/RF Interference from Base-Station RRU, Microwave Equipment & High-Voltage Lines |
| Data Continuity | Offline Data Caching & Automatic Retransmission After Network Recovery |
| Remote Monitoring | Cloud Platform, Mobile Mini Program & SMS Alerts |
Application Areas for Object Tilt Monitor
The Object Tilt Monitor is designed for continuous structural tilt and displacement monitoring across communication infrastructure. It helps identify risks caused by foundation settlement, severe weather, construction disturbance, geological movement, and structural deterioration.
Communication Tower Safety Monitoring
Deploy the Object Tilt Monitor on monopole towers, lattice towers, three-legged towers, rooftop towers, guyed towers, and other fixed communication structures. Continuous X, Y, and Z-axis monitoring helps identify subtle structural tilt and deformation that may be difficult to detect through routine visual inspection.
Foundation Settlement Monitoring
Monitor gradual, directional tilt caused by uneven foundation settlement, aging or cracked concrete foundations, and changes in soft or backfilled soil. Long-term trend data can reveal progressive movement and support earlier investigation and corrective maintenance.
Severe Weather & Geological Risk Monitoring
For towers exposed to strong winds, typhoons, heavy rainfall, mountainous slopes, and landslide-prone areas, intelligent filtering helps distinguish temporary wind-induced vibration from persistent structural tilt. Monitoring frequency can also be increased during severe weather and flood seasons.
Construction & Structural Deformation Monitoring
Nearby excavation, roadwork, pile construction, corrosion, loose bolts, and component fatigue can cause sudden or progressive tower movement. The Object Tilt Monitor tracks changes in tilt and tilt rate, enabling rapid alerts for abnormal displacement and supporting targeted inspection and reinforcement.
