Edge Data Acquisition Computer: Intelligent IoT Terminal for Real-Time MonitoringAdvanced Edge Computing Solution for Industrial and Commercial Applications
Revolutionizing data collection with edge intelligence, real-time processing capabilities, and seamless connectivity for diverse monitoring scenarios.

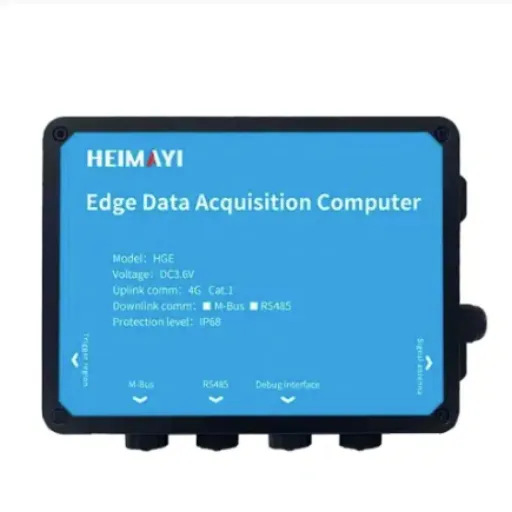

Features of Edge Data Acquisition Computer
The Low-Power Remote Data Acquisition RTU combines cutting-edge technology with practical design, delivering powerful performance for industrial and commercial monitoring applications across multiple sectors.
Built-in intelligent algorithms enable local data collection, real-time processing, and smart analysis. The device filters invalid data, extracts key features, and performs real-time inference locally, transmitting only valuable results to the cloud with end-to-end latency controlled within 10-50ms.
Featuring ultra-low power consumption with standby current less than 2μA, the lithium battery can provide up to 10 years of standby time. With default battery capacity and 2-hour collection intervals, the device achieves 6 years of operational lifespan.
Supports RS485, M-Bus, and analog signal (4-20mA) communication interfaces for various meters and valves. Compatible with domestic and international protocols for heat meters, water meters, and valve systems. Non-standard interfaces can be customized to meet specific requirements.
IP68-rated waterproof and dustproof protection withstands harsh environments with strong anti-magnetic interference. Compact dimensions (194mm×135mm×50mm) fit narrow spaces perfectly. Integrated 4G module eliminates wiring needs, enabling plug-and-play installation with stable communication quality.
Our Edge Data Acquisition Computer Models
Explore our comprehensive range of Edge Data Acquisition Computer models designed to meet diverse monitoring needs across industrial, commercial, and municipal applications with flexible configuration options.

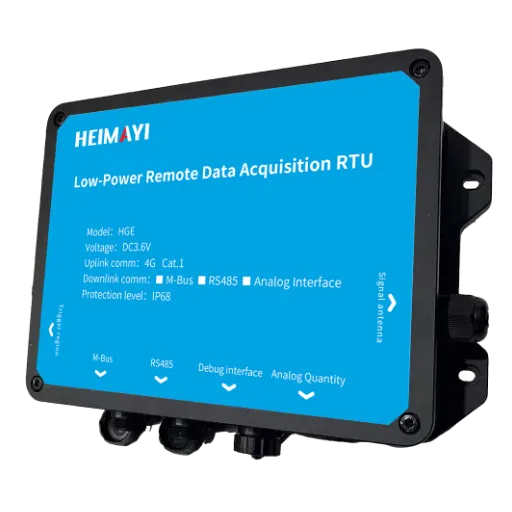

HGE Edge Data Acquisition Computer
Benefits of Using Edge Data Acquisition Computer
Implementing the Edge Data Acquisition Computer delivers transformative advantages for operational efficiency, cost savings, and system reliability across smart infrastructure and industrial monitoring applications.
Detailed Technical Specifications
| Category | Basic Model |
|---|---|
| Uplink Communication | 4G |
| Downlink Communication | M-Bus, RS485 and other digital signals, analog signals (4-20mA) for various heat meters, water meters, valves, etc. |
| Extended Collection | Temperature, humidity, pressure, liquid level, methane, etc. |
| Power Supply | Power Supply Method |
| Standby Current | Less than 2 uA |
| Operating Voltage | 3.6V |
| Battery Capacity | 38000mAh (default), housing supports up to 76000mAh |
| Protection Rating | IP68 |
| Collection Cycle | Default 30 minutes to 30 days, customizable |
| Upload Cycle | Default 30 minutes to 30 days, customizable |
| Shell Material | Aluminum Alloy |
| Dimensions | 194mm×135mm×50mm |
| Installation Method | Wall-mounted |
Uses and Applications of Edge Data Acquisition Computer
The Edge Data Acquisition Computer serves diverse industries with versatile monitoring and control capabilities, enabling smart infrastructure transformation across municipal, industrial, and commercial sectors with proven reliability.
Smart Utilities & Water Management
Ideal for monitoring large-diameter water meters, ultrasonic flow meters, and valve control systems in municipal water networks. Enables real-time leak detection, pressure monitoring, and automated valve regulation. Perfect for residential communities, industrial parks, and district heating systems.
Industrial Facilities & Manufacturing
Monitors production equipment, pipeline conditions, and environmental parameters in factories and plants. Tracks temperature, humidity, pressure, and methane levels in underground pipelines and confined spaces. Supports predictive maintenance and equipment optimization for enhanced operational efficiency.
Commercial Buildings & Property Management
Streamlines facility management for apartments, office buildings, hospitals, schools, and sports venues. Integrates with management platforms and mobile apps for remote monitoring, work order management, and maintenance scheduling. Reduces response times and operational costs significantly.
Smart Infrastructure & Safety Monitoring
Essential for intelligent transportation systems, fire safety monitoring, utility tunnels, and manhole cover surveillance. Provides real-time alerts for abnormal conditions, environmental hazards, and security breaches. Enhances public safety with reliable 24/7 monitoring capabilities.
Positive Displacement Water Meters: How They Work
A worn positive displacement water meter doesn’t fail. It keeps turning, keeps billing, and quietly under-reports. A burst main gets…
Choosing a 4-20 mA Signal Isolator for Pressure Transmitters: Ground Loops and Active/Passive Inputs
Choose a 4-20 mA signal isolator by matching the power roles on both sides, the required isolation boundaries, and each…
NAMUR NE43 for Pressure Transmitters: Fault Current vs Measurement Saturation
NAMUR NE43 separates failure signals from pressure readings in an analog current loop. At saturation, the transmitter has reached its…
Maintenance and Care for Edge Data Acquisition Computer
The lithium battery provides up to 6 years of operation with standard collection intervals. Battery replacement is simple and convenient, requiring no special tools. Monitor battery status through the management platform to schedule timely replacements and ensure uninterrupted operation.
Periodically inspect the device housing for physical damage or seal integrity. Clean the exterior surface to maintain IP68 protection effectiveness. Verify communication signal strength and check connection terminals for corrosion or loose fittings to ensure reliable data transmission.
Utilize the management platform and mobile app to monitor device performance and receive alerts. Apply firmware updates remotely to enhance functionality and security. Review data logs regularly to identify anomalies and optimize collection schedules for maximum efficiency.
Why Choose Our Edge Data Acquisition Computer
Our Edge Data Acquisition Computer stands out in the market with proven reliability, advanced edge computing capabilities, and comprehensive support. Trusted by customers across multiple industries, we deliver innovative solutions that reduce costs while enhancing operational performance and system intelligence.
Frequently Asked Questions (FAQs)
Find answers to common questions about the Edge Data Acquisition Computer. For additional information or specific inquiries, please contact our technical support team.
01
01
With the default 38000mAh battery capacity and collection/upload intervals set to every 2 hours, the device can operate for up to 6 years. In standby mode, the battery can last up to 10 years due to ultra-low power consumption (less than 2μA standby current).
02
02
The device supports various heat meters, water meters, and valves through RS485, M-Bus, and analog signal (4-20mA) interfaces. It is compatible with domestic and international protocols. Additionally, it can be expanded to support temperature, humidity, pressure, liquid level, and methane sensors.
03
03
No wiring is required. The Edge Data Acquisition Computer features an integrated 4G module with a built-in data SIM card for wireless communication. Installation is plug-and-play, making it ideal for locations where wiring is difficult or costly.
04
04
Yes, the device is rated IP68 for waterproof and dustproof protection, making it suitable for harsh environments. It features strong anti-magnetic interference capability and an aluminum alloy housing that ensures durability and reliability in extreme conditions.
05
05
Edge computing processes data locally at the device level, filtering invalid data and extracting key features before transmission. This reduces end-to-end latency to 10-50ms, minimizes bandwidth consumption, enhances data security, and enables real-time decision-making without cloud dependency.
06
06
Yes, both collection and upload cycles are fully customizable, ranging from 30 minutes to 30 days based on your specific monitoring requirements. Custom intervals can be configured through the management platform to optimize battery life and data frequency.
07
07
The device measures 194mm×135mm×50mm, making it compact enough for narrow spaces. It features wall-mounted installation with a simple setup process. The small footprint and wireless design allow flexible placement in various locations including meter rooms, underground wells, and confined spaces.
