Fan Coil Control Valve: Advanced Control Solutions for Hydronic HVAC SystemsUnderstanding Fan Coil Unit Control Valve Technology
Fan coil control valves are vital for precise temperature regulation and energy efficiency in commercial HVAC systems. By managing the flow of hot or chilled water, they offer reliable, high-performance climate control for individual zones.

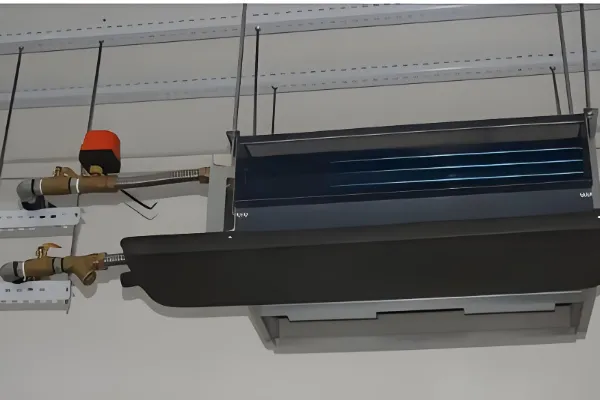

Features of Fan Coil Control Valve
Modern fan coil control valves incorporate advanced engineering features that deliver superior performance, reliability, and energy efficiency for commercial HVAC applications. These sophisticated components combine precision manufacturing with intelligent control capabilities to meet the demanding requirements of international building projects.
The valve automatically adjusts opening position based on real-time feedback from room temperature sensors, maintaining setpoints within ±0.5℃ accuracy. This precise control eliminates temperature fluctuations and ensures consistent occupant comfort across all operating conditions.
Electric actuators respond to thermostat commands within 2-5 seconds, quickly adjusting valve position to match changing thermal loads. This fast reaction time prevents temperature lag during sudden occupancy changes or weather transitions, maintaining optimal comfort levels continuously.
By preventing excessive hot or chilled water flow to terminal units, the control valve reduces HVAC system energy consumption by 15-30%. The intelligent flow modulation minimizes pump operation costs and decreases primary equipment runtime, delivering measurable utility cost reductions.
Built-in protection features including freeze prevention and overflow safeguards extend operational life beyond 50,000-100,000 cycles. Premium materials and robust construction ensure reliable performance in demanding commercial environments, reducing maintenance frequency and replacement costs.
Our Fan Coil Control Valve Models
As a leading manufacturer and supplier of hydronic control solutions, we offer a comprehensive range of fan coil control valves engineered to meet diverse project requirements across international markets.

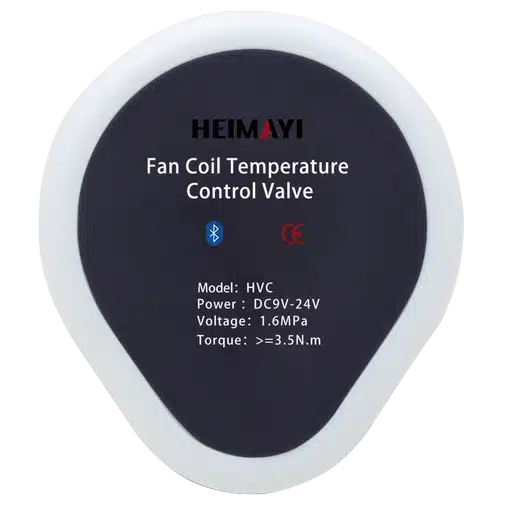

Fan Coil Temperature Control Valve
How Choosing the Right Fan Coil Control Valve
Selecting the appropriate control valve for your fan coil unit installation is a critical decision that impacts system performance, energy efficiency, and long-term operational costs. A well-matched valve ensures optimal temperature control, minimizes energy waste, and reduces maintenance requirements throughout the equipment lifecycle.
Detailed Technical Specifications
| Specification | Technical Parameters |
|---|---|
| Working Pressure | 1.6 MPa (standard type), 2.5 MPa (high-pressure type) |
| Valve Body Material | Brass (H59-1), Stainless Steel (304) |
| Leakage Rate | ≤0.01% Kv value (soft seal), ≤0.1% Kv value (hard seal) |
| Power Supply Voltage | AC220V±10%, DC24V±5% |
| Driving Power | ≤10W (operating), ≤0.1W (static) |
| Operating Life | ≥50,000 cycles (two-way valve), ≥100,000 cycles (ball valve) |
| Communication Method | RS485 |
| Control Accuracy | ±0.5℃ |
| Operating Temperature | Valve: 5-120℃, Actuator: -10-50℃ |
| Protection Rating | IP54 |
| Water Temperature | 0-95℃ |
Uses and Applications of Fan Coil Control Valve
Fan coil control valves serve as essential components across diverse commercial, institutional, and residential HVAC installations worldwide.
Commercial Office Buildings
Fan coil valves provide individualized temperature control for open offices, conference rooms, and perimeter zones. They enable energy savings through occupancy-based scheduling while maintaining comfort during business hours, making them ideal for corporate headquarters, business centers, and co-working spaces seeking efficient operations.
Hospitality and Hotels
Guest room climate control relies on fan coil control valves to deliver personalized comfort while minimizing energy waste in unoccupied rooms. These valves integrate seamlessly with hotel management systems for automated temperature adjustment, ensuring guest satisfaction while reducing operational costs across properties of all sizes.
Healthcare Facilities
Hospitals and medical centers utilize control valves for precise temperature maintenance in patient rooms, operating theaters, and laboratory spaces. The reliable performance and accurate temperature control ensure compliance with healthcare standards while supporting patient recovery and staff productivity in critical care environments.
Educational Institutions
Schools, universities, and training facilities depend on fan coil valves for classrooms, lecture halls, dormitories, and administrative buildings. These systems adapt to varying occupancy patterns throughout the day, providing comfortable learning environments while achieving significant energy savings during unoccupied periods and holiday breaks.
