Large Diameter Water Meters for Commercial ApplicationsUnderstanding Water Meter Technology and Measurement Principles
Our comprehensive portfolio offers advanced, smart water meters for global business buyers. From large-diameter to ultrasonic models, our durable, cost-effective solutions provide precise flow measurement for residential, commercial, and industrial applications.
Features of Large Diameter Water Meter
Large diameter water meters are designed for high-volume municipal, industrial, and commercial systems. Built for accuracy and durability, they feature smart technology for remote monitoring and automated data collection.
Large diameter water meters accommodate substantial flow variations from minimum to maximum capacity, ensuring accurate measurement across diverse operational conditions. Advanced measurement mechanisms maintain precision at both low nighttime flows and peak demand periods, providing comprehensive consumption data throughout daily usage cycles.
Premium materials including 304 stainless steel components and corrosion-resistant alloys ensure extended operational life in challenging water quality environments. Sealed electronic chambers, magnetic coupling transmission, and reinforced mechanical assemblies provide reliable performance with minimal maintenance requirements throughout multi-year service periods.
Integrated NB/4G communication modules enable real-time data transmission to centralized management platforms, eliminating manual reading requirements. Wireless connectivity supports automated meter reading, remote valve control, prepayment functionality, and instant alert notifications for anomalies, enhancing operational efficiency and customer service capabilities.
Versatile mounting configurations accommodate various pipeline layouts and space constraints without compromising measurement accuracy. Many designs eliminate straight pipe segment requirements, simplifying installation in retrofit applications. Field-serviceable components enable maintenance without complete meter removal, reducing downtime and operational disruption.
Our Large Diameter Water Meter Models
We offer comprehensive large diameter water meter solutions including WS Series IoT Horizontal and Vertical Spiral Wing models, ranging from DN50 to DN600, with NB/4G connectivity and optional valve control functionality for diverse industrial and municipal applications.

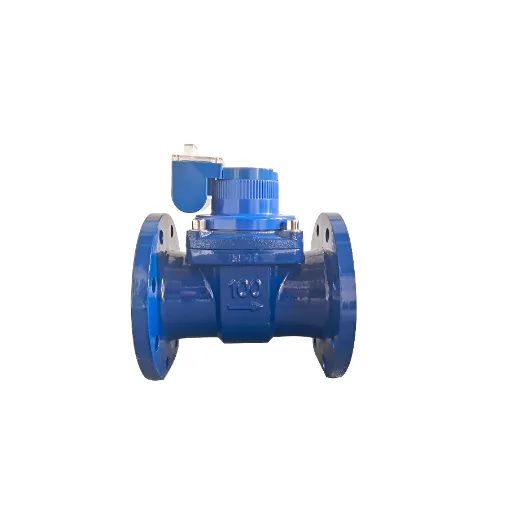

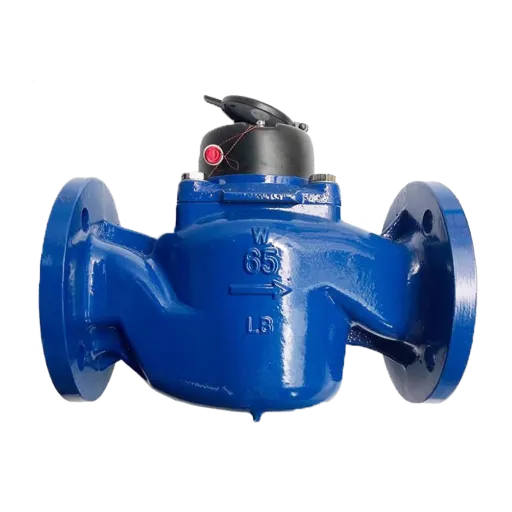

WS Series Large-diameter IoT Horizontal Spiral Wing Water Meter
WS Series Large-diameter IoT Vertical Spiral Wing Water Meter
Benefits of Using Large Diameter Water Meter
Large diameter water meters offer operational, financial, and environmental benefits for utilities, industries, and businesses. These advanced meters optimize water management, improve billing accuracy, cut costs, and enhance sustainability.
Detailed Technical Specifications
| Model Type | Nominal Diameter (DN) | Ratio R | Minimum Flow Q₁ (m³/h) | Transitional Flow Q₂ (m³/h) | Permanent Flow Q₃ (m³/h) | Overload Flow Q₄ (m³/h) | Minimum Reading (m³) | Maximum Reading (m³) |
|---|---|---|---|---|---|---|---|---|
| Horizontal Spiral Wing | 40 | R50 | 0.32 | 0.51 | 16 | 20 | 0.02 | 999999 |
| Horizontal Spiral Wing | 50 | R50 | 0.5 | 0.8 | 25 | 31.25 | 0.02 | 999999 |
| Vertical Spiral Wing | 50 | R200 | 0.2 | 0.32 | 40 | 50 | 0.001 | 999999 |
| Horizontal Spiral Wing | 65 | R50 | 0.8 | 1.28 | 40 | 50 | 0.02 | 999999 |
| Horizontal Spiral Wing | 80 | R50 | 1.26 | 2 | 63 | 78.75 | 0.02 | 999999 |
| Vertical Spiral Wing | 80 | R200 | 0.32 | 0.5 | 63 | 78 | 0.001 | 999999 |
| Horizontal Spiral Wing | 100 | R50 | 2 | 3.2 | 100 | 125 | 0.02 | 999999 |
| Vertical Spiral Wing | 100 | R200 | 0.5 | 0.8 | 100 | 125 | 0.001 | 999999 |
| Horizontal Spiral Wing | 125 | R50 | 3.2 | 5.12 | 160 | 200 | 0.02 | 999999 |
| Horizontal Spiral Wing | 150 | R50 | 5 | 8 | 250 | 312.5 | 0.02 | 999999 |
| Vertical Spiral Wing | 150 | R200 | 1.25 | 2 | 250 | 313 | 0.001 | 999999 |
| Horizontal Spiral Wing | 200 | R50 | 8 | 12.8 | 400 | 500 | 0.02 | 999999 |
| Vertical Spiral Wing | 200 | R200 | 2 | 3.2 | 400 | 500 | 0.001 | 999999 |
| Horizontal Spiral Wing | 250 | R50 | 12.6 | 20.2 | 630 | 787.5 | 0.2 | 999999 |
| Horizontal Spiral Wing | 300 | R50 | 20 | 32 | 1000 | 1250 | 0.2 | 999999 |
Uses and Applications of Large Diameter Water Meter
Large diameter water meters are essential for high-volume water management in sectors like municipal distribution and industrial manufacturing. They ensure accurate tracking, leak detection, and resource optimization.
Municipal Water Distribution Systems
City water utilities deploy large diameter meters at distribution mains, pressure zones, and master metering points to monitor network performance. These installations track wholesale water delivery, identify distribution losses, and support hydraulic modeling for infrastructure planning and leak management programs.
Industrial Manufacturing Facilities
Manufacturing plants utilize large-diameter metering for process water monitoring, cooling tower makeup, and utility consumption tracking. Accurate measurement supports production cost allocation, environmental compliance reporting, and identification of efficiency improvement opportunities across facility operations.
Commercial Buildings and Complexes
Office towers, shopping centers, hospitals, and institutional campuses require large capacity meters for central water supply monitoring. These installations enable tenant submetering, benchmarking against similar facilities, and verification of water conservation initiatives while supporting sustainability certification requirements.
Agricultural Irrigation Networks
Large-scale irrigation systems depend on accurate flow measurement for equitable water distribution, compliance with allocation limits, and efficient resource management. High-capacity meters monitor canal deliveries, pump station output, and district-level consumption supporting agricultural water management and regulatory reporting.
Positive Displacement Water Meters: How They Work
A worn positive displacement water meter doesn’t fail. It keeps turning, keeps billing, and quietly under-reports. A burst main gets…
Choosing a 4-20 mA Signal Isolator for Pressure Transmitters: Ground Loops and Active/Passive Inputs
Choose a 4-20 mA signal isolator by matching the power roles on both sides, the required isolation boundaries, and each…
NAMUR NE43 for Pressure Transmitters: Fault Current vs Measurement Saturation
NAMUR NE43 separates failure signals from pressure readings in an analog current loop. At saturation, the transmitter has reached its…
Maintenance and Care for Large Diameter Water Meter
Conduct quarterly visual inspections to verify seal integrity, check for physical damage, and confirm proper display functionality. Monitor battery status on electronic meters, review communication system performance, and validate data transmission consistency. Document all inspection findings for trend analysis and predictive maintenance planning.
Schedule calibration testing every 4-6 years using certified reference standards to confirm continued accuracy compliance. Compare field performance against manufacturer specifications, adjust as necessary, and maintain comprehensive calibration records. Early detection of measurement drift enables timely intervention before revenue impact occurs.
Clean strainer baskets regularly to prevent flow restriction and measurement errors. Inspect and lubricate valve mechanisms on meters with integrated controls. Replace batteries proactively based on monitoring data rather than waiting for failure. Service magnetic coupling assemblies according to manufacturer recommendations to maintain optimal torque transmission.
Why Choss Our Large Diameter Water Meter
Our WS Series large diameter water meters combine proven metering accuracy with advanced IoT connectivity, delivering superior performance for demanding applications. Backed by rigorous quality control, comprehensive technical support, and competitive pricing, we provide reliable measurement solutions that maximize operational efficiency and ensure long-term value for your water management infrastructure.
Frequently Asked Questions (FAQs)
This comprehensive FAQ section addresses common inquiries to help you make informed procurement decisions and ensure successful implementation of advanced water metering solutions for your projects.
01
01
Horizontal spiral wing meters feature a rotor axis parallel to water flow, ideal for standard installations with adequate straight pipe sections. Vertical spiral wing meters position the rotor perpendicular to flow, offering superior performance in variable flow conditions, requiring no straight pipe segments, and providing more flexible installation options in space-constrained environments.
02
02
Meter sizing depends on your expected flow rates. Calculate maximum, normal, and minimum flows for your system. Select a meter where normal flow falls within the permanent flow (Q₃) range and peak demand stays below overload flow (Q₄). For municipal mains, typically DN100-DN300; industrial facilities often require DN80-DN200; large commercial buildings use DN50-DN150.
03
03
Our WS Series meters achieve ±2% accuracy in the high flow zone (Q₂ to Q₄) and ±5% in the low flow zone (Q₁ to Q₂). The R50 and R200 ratio designations indicate measurement range capability—R200 models offer four times wider range than R50, maintaining precision across greater flow variations for applications with fluctuating demand patterns.
04
04
Our large diameter water meters provide 10-15 years of mechanical service life under normal operating conditions. The integrated IoT communication module features ultra-low power consumption with battery life exceeding 6 years. Advanced magnetic coupling transmission and corrosion-resistant materials ensure sustained accuracy and reliability throughout the operational period.
05
05
While our WS Series meters are optimized for NB-IoT and 4G connectivity, they continue accurate measurement and local data storage even without network coverage. Data accumulates in onboard memory and transmits automatically once connectivity restores. For permanent off-grid installations, we offer models with M-Bus or pulse output for wired data collection.
06
06
Minimal maintenance is required due to robust design. Quarterly visual inspections verify physical condition and seal integrity. Battery monitoring through the IoT platform alerts you to replacement needs. Calibration verification every 4-6 years ensures continued accuracy. The field-serviceable magnetic coupling assembly allows internal mechanism maintenance without complete meter removal.
07
07
Yes, our meters incorporate 304 stainless steel construction and integrated filtration systems designed for challenging water quality. The built-in strainer prevents debris from affecting measurement accuracy. Vertical spiral wing models particularly excel in water with suspended particles. However, extremely corrosive or contaminated water may require additional upstream treatment for optimal meter longevity.
