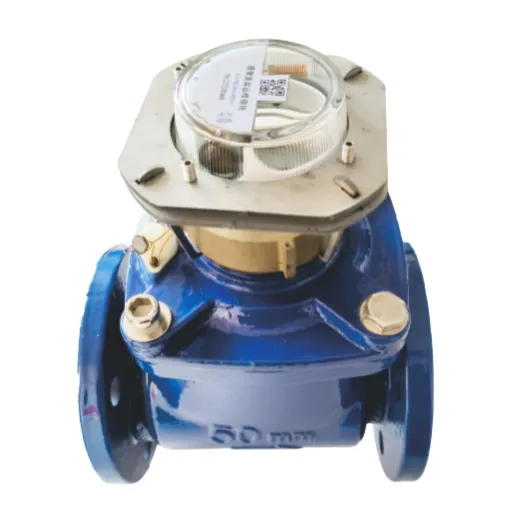

Camera Water Meter: Advanced Remote Water MonitoringUnderstanding Camera Direct Reading Water Meter Technology
Camera direct reading water meters combine mechanical reliability with IoT technology for accurate, wireless remote monitoring. Cost-effective and durable, they use advanced image recognition for precise data in large-scale applications.
Features of Camera Water Meter
Camera direct reading water meter modules combine reliable mechanical measurement with IoT connectivity. They enable automated, wireless data collection for modern water management, offering B2B buyers a streamlined, innovative solution.
Camera modules install externally on existing mechanical water meters without requiring disassembly, modification, or meter replacement. The 100% separation between module and base meter preserves manufacturer warranties, eliminates installation complexity, and enables module reuse across different meters throughout their operational lifecycle.
ER26500+SPC lithium battery power supply with optimized duty cycles delivers 6+ years of maintenance-free operation. Intelligent power management, low voltage alerts, and efficient wireless transmission protocols minimize energy consumption while maintaining reliable daily reading schedules across large-scale deployments.
Deep learning algorithms combined with frontend template recognition achieve over 99% accuracy in converting meter dial images to digital readings. The system captures both binary processed images and original photographs, providing zero-error data collection with complete transparency for auditing and dispute resolution purposes.
Multiple connectivity options including NB-IoT direct transmission and LPWAN self-organizing networks accommodate diverse deployment environments. IP68 protection rating ensures reliable operation in harsh conditions including underground installations, while protocol flexibility supports integration with existing infrastructure and future technology evolution.
Our Camera Water Meter Models
We offer a comprehensive range of camera direct reading modules engineered for diverse water metering applications, from small diameter residential installations to large aperture industrial systems, each optimized for specific deployment requirements and operational environments.

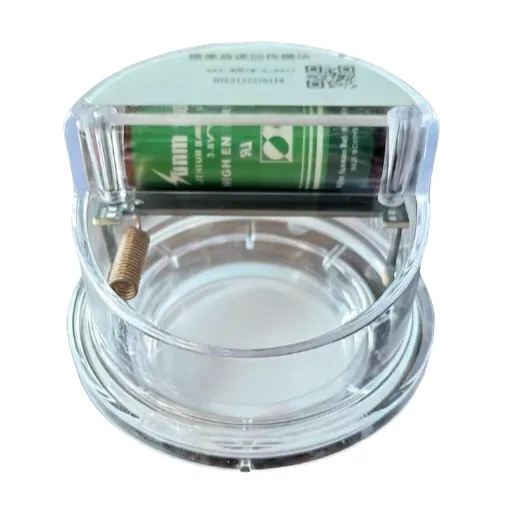

HWC IoT Camera Direct Reading Module

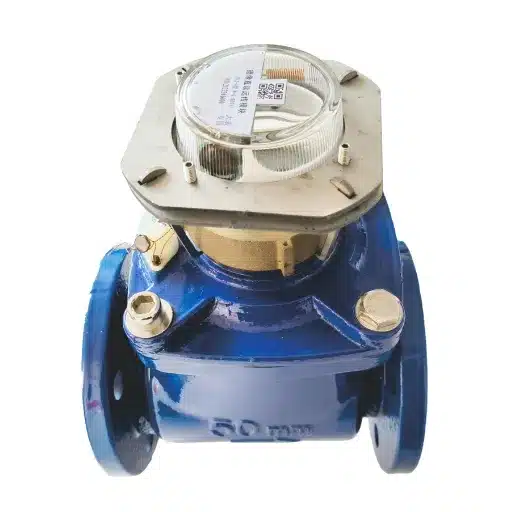

HWC Large Aperture Camera Direct Reading Module (Glass)

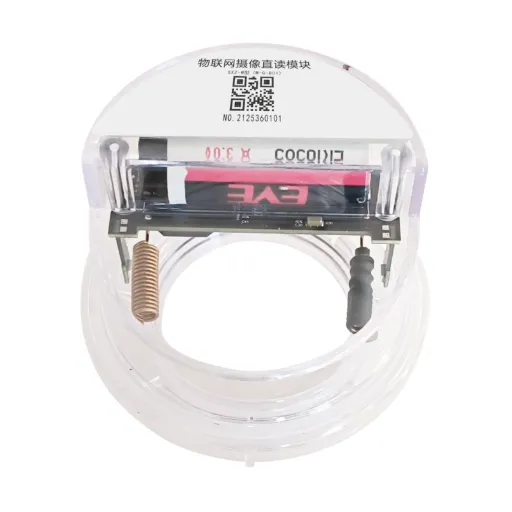

HWC IoT Camera Remote Transmission Module
Benefits of Using Camera Water Meter
Camera direct reading water meter technology offers significant benefits, enhancing water management, cutting costs, and improving service quality across the metering infrastructure.
Detailed Technical Specifications
| Specification | HWC IoT Camera Direct Reading Module | HWC Large Aperture Camera Direct Reading Module (Glass) | HWC IoT Camera Remote Transmission Module |
|---|---|---|---|
| Application | Small diameter meter upgrades | Large diameter meters, harsh environments | Small diameter with NB-IoT transmission |
| Power Consumption | Standby <3μA, Working <30mA | Standby <3μA, Working <30mA | Standby <3μA |
| Operating Temperature | -25~65°C | -25~65°C | -25~65°C |
| Communication | LPWAN 200kbps | LPWAN 200kbps | NB-IoT |
| Recognition Accuracy | >99% | >99% | >99% |
| Reading Time | <3s | <3s | <3s |
| Protection Rating | IP68 | IP68 | IP68 |
| Battery Type/Capacity | Internal lithium battery | Internal lithium battery | ER18505 / 4000mAh |
| Battery Life | 6+1 years | Extended operation | Extended operation |
| Data Output | Binary/original images, digital data | Binary/original images | Binary/original images, digital data |
Uses and Applications of Camera Water Meter
Camera-read water meter technology provides accurate, automated monitoring for municipal utilities and industrial facilities, ensuring reliable performance and adaptable solutions.
Municipal Water Utility Networks
Automate residential and commercial meter reading across large service territories, eliminating manual collection routes. Enable accurate billing, rapid leak detection, and improved customer service through real-time consumption data and automated anomaly alerts for municipal water management optimization.
Industrial and Manufacturing Operations
Monitor production process water usage for cost allocation, environmental compliance reporting, and resource optimization. Non-invasive installation preserves existing infrastructure while providing precise measurement data essential for operational efficiency analysis and sustainability initiatives.
Multi-Tenant Property Management
Implement fair tenant billing in commercial buildings, apartment complexes, and mixed-use developments. Automated reading eliminates estimation disputes, reduces administrative overhead, and ensures transparent water usage accounting across multiple occupied units.
Agricultural and Irrigation Systems
Track water allocation across geographically dispersed irrigation networks and agricultural operations. Wireless remote monitoring supports equitable distribution management, conservation compliance verification, and data-driven irrigation scheduling for improved crop yields and resource efficiency.
Positive Displacement Water Meters: How They Work
A worn positive displacement water meter doesn’t fail. It keeps turning, keeps billing, and quietly under-reports. A burst main gets…
Choosing a 4-20 mA Signal Isolator for Pressure Transmitters: Ground Loops and Active/Passive Inputs
Choose a 4-20 mA signal isolator by matching the power roles on both sides, the required isolation boundaries, and each…
NAMUR NE43 for Pressure Transmitters: Fault Current vs Measurement Saturation
NAMUR NE43 separates failure signals from pressure readings in an analog current loop. At saturation, the transmitter has reached its…
Maintenance and Care for Camera Water Meter
Monitor battery voltage alerts through the meter reading system and schedule proactive replacement before depletion. Typical battery life exceeds six years under normal conditions, with replacement requiring minimal time and no specialized tools or meter shutdown.
Inspect camera lens periodically for dust, condensation, or debris accumulation that may affect image quality. Clean lens surfaces gently using appropriate materials to maintain optimal clarity and recognition accuracy without damaging the camera module’s protective housing.
Conduct routine visual inspections verifying secure module mounting and connection integrity. Test data transmission periodically to confirm network connectivity and validate reading accuracy, addressing any anomalies promptly to maintain continuous monitoring capabilities and data reliability.
Why Choose Our Camera Water Meter
Our camera direct reading water meter solutions combine proven reliability with cutting-edge technology, delivering over 99% recognition accuracy and 6+ year battery life. As an experienced water meter manufacturer and supplier, we provide comprehensive technical support, competitive pricing, and customizable solutions tailored to your specific deployment requirements for successful intelligent transformation of existing mechanical water meter infrastructure.
Frequently Asked Questions (FAQs)
Below we address the most common inquiries regarding installation, compatibility, performance, and operational considerations to help you make informed procurement decisions.
01
01
Yes, camera direct reading modules are specifically designed for retrofitting existing mechanical water meters without requiring meter replacement or internal modifications. The modules mount externally on the meter face, capturing dial readings through advanced image recognition technology while preserving the base meter’s integrity and manufacturer warranty.
02
02
Our camera direct reading modules typically achieve 6+ years of battery life under normal operating conditions using ER26500+SPC lithium battery technology. Actual battery life depends on reading frequency, ambient temperature, network signal strength, and data transmission volume. The system provides low voltage alerts enabling proactive battery replacement before depletion.
03
03
Our camera direct reading water meter systems achieve over 99% recognition accuracy through deep learning algorithms combined with frontend template recognition technology. The system captures both binary processed images and original photographs, allowing human verification when needed and continuous algorithm improvement through machine learning on corrected examples.
04
04
We offer multiple wireless communication technologies to suit different deployment scenarios. The HWC modules utilize LPWAN self-organizing networks for cost-effective local data collection, while the WP102 module employs NB-IoT for direct transmission to cloud servers. Hybrid architectures combining both technologies optimize coverage and operational costs.
05
05
No specialized skills are required. The wire-free, non-invasive installation design allows standard field personnel to mount modules on mechanical water meters within minutes. Basic training covers module positioning, camera lens alignment, and system activation. Maintenance involves simple battery replacement and occasional lens cleaning without requiring plumbing expertise.
06
06
Yes, all our camera direct reading modules feature IP68 protection rating, ensuring resistance to dust and water ingress. The modules operate reliably across temperatures from -25°C to +65°C, making them suitable for underground meter pits, basement installations, outdoor environments, and other challenging conditions encountered in water infrastructure.
07
07
Our camera direct reading water meter systems provide flexible integration options through standard APIs and data protocols. The digital data output feeds directly into billing systems, GIS platforms, and water management software. We provide technical documentation and integration support to ensure seamless connectivity with your existing enterprise infrastructure.
