Smart Manhole Covers – IoT InfrastructureIoT-Enabled Infrastructure Monitoring & Safety
In the contemporary urban landscape, the integration of advanced technologies into infrastructure is pivotal. Smart manhole covers represent a significant leap forward in the management of underground utilities, leveraging IoT technology to transform traditional manhole covers into intelligent, responsive components of city infrastructure.

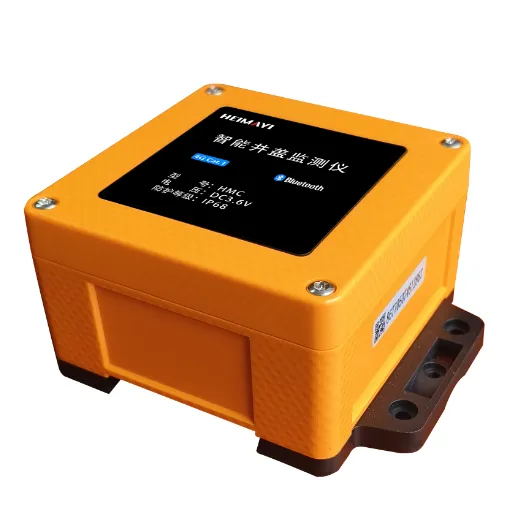

Product Overview about smart manhole cover
Unlike traditional manhole covers, these smart systems are equipped with IoT sensors that provide real-time data on various parameters.
The intelligent manhole cover monitor is a product independently developed by our company for smart city services; it is a device used to monitor the status of manhole covers.
Installed on the back of the manhole cover, the manhole cover monitoring device will trigger an alarm when the manhole cover moves abnormally and reaches the alarm condition, or when the water accumulation in the manhole reaches the warning value.
Data such as manhole cover status and equipment parameters are transmitted wirelessly to the monitoring center, where the monitoring center analyzes the data and determines alarm status.
This product uses 4G wireless communication. It is battery-powered and features easy installation, long battery life, high detection accuracy, and stable operation.
Our Smart Manhole Cover Models
Discover our comprehensive range of smart manhole cover models, engineered for modern urban infrastructure management.

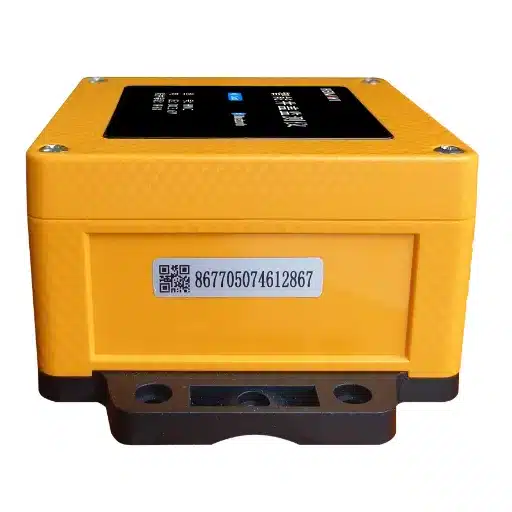

HMC Intelligent Manhole Cover Monitoring Instrument
Advantages of Smart Manhole Covers
The intelligent monitoring and quick response capabilities significantly reduce the risks associated with traditional manhole covers, offering a safer urban environment for all.
Detailed Technical Specifications
| Feature | Specification |
|---|---|
| Monitoring Function | Tilt Displacement (1-180°) |
| Optional Monitoring | Liquid Level, Water Immersion |
| Communication Method | 4G Cat.1 + Bluetooth |
| Battery Life | 6 years (with good and stable communication) |
| Response Time | Less than 10 seconds |
| Battery Capacity | 19,000mAh |
| Operating Temperature | -30°C to +75°C |
| Casing Material | ABS Helmet Material |
| Dimensions | 142mm (Length) x 105mm (Width) x 63mm (Height) |
| Installation Location | Back of Manhole Cover |
| Protection Level | IP68 (Dustproof and Waterproof) |
Application Areas for Smart Manhole Covers
Smart manhole covers are designed to enhance urban infrastructure management through intelligent monitoring and real-time data transmission.
Real-Time Monitoring and Alerts
Continuously monitors the status of manhole covers, including tilt, displacement, or unauthorized opening.Detects high water levels or flooding within the manhole and triggers immediate alerts.Sends real-time data to a centralized Smart Manhole Cover Management Platform for analysis and action.
Intelligent Control and Management
Integration with building management systems is seamless. The Balancing Valve ensures automated regulation of heating and cooling circuits, optimizing energy use for commercial complexes, office buildings, and multi-tenant residential facilities.
Alarm and Incident Response
Automatically generates alarms for issues such as manhole cover tilt, theft, or high water levels.Alerts are sent to responsible departments or personnel for immediate troubleshooting and resolution. Reduces response time and prevents potential safety hazards or infrastructure damage.
Retrofit Projects
In the realm of utility management, smart manhole covers offer unprecedented control and oversight. By continuously monitoring manhole cover status and water levels, these systems allow for proactive management of water supply and wastewater utilities. The integration of IoT solutions in utility management ensures efficient resource allocation and reduces the risk of disruptions caused by system failures.
Choosing a 4-20 mA Signal Isolator for Pressure Transmitters: Ground Loops and Active/Passive Inputs
Choose a 4-20 mA signal isolator by matching the power roles on both sides, the required isolation boundaries, and each…
NAMUR NE43 for Pressure Transmitters: Fault Current vs Measurement Saturation
NAMUR NE43 separates failure signals from pressure readings in an analog current loop. At saturation, the transmitter has reached its…
Types of Water Meters: The Complete Selection Guide
A meter that can’t see night flow isn’t measuring a building. It’s estimating one. That distinction costs utilities real money.…

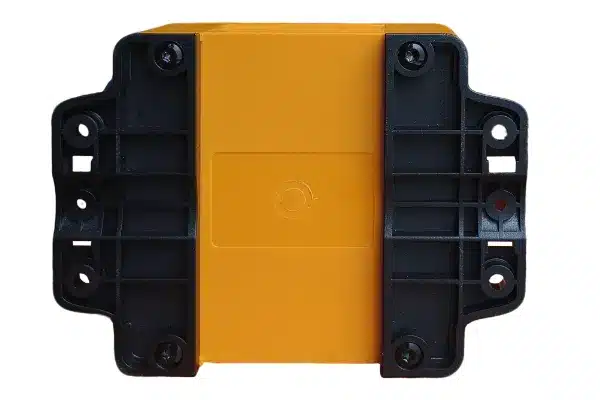

After-Sales Service for Smart Manhole Cover
All product manufacturing and testing processes are documented with quality records and inspection data.
We sincerely invite users to participate in the full-process and full-performance inspection of the product. The product will only be packed and shipped after being confirmed as qualified.
The equipment packaging is designed to meet moisture-proof, rust-proof, anti-corrosion, and shock-proof requirements, with clear and accurate labeling to ensure the safe and timely delivery of the product to the site.
To ensure high reliability and advanced performance, all system components are selected from high-quality domestic or international brands.
Under the same competitive conditions, we guarantee to offer the most favorable price without compromising the product’s technical performance or altering its components.
The product delivery schedule will strictly adhere to the contract. For special requirements or urgent needs, we can organize expedited production and installation to meet customer demands.
Why Choose Black Ant Company’s Smart Manhole Covers?
Our products are designed with cutting-edge IoT technology to provide accurate, real-time monitoring of manhole cover status and utility networks. Our dedication to continuous improvement and technological advancement positions us as leaders in the market, offering state-of-the-art solutions that meet the evolving needs of modern cities.
Frequently Asked Questions (FAQs)
Discover answers to common questions about balancing valves, including their purpose, benefits, and how they improve system efficiency.
01
01
A smart manhole cover is an innovative infrastructure solution equipped with sensors and communication technology. It can monitor conditions inside the manhole cover and provide real-time data to enhance asset management and safety management for urban environments.
02
02
Manhole monitoring utilizes sensors installed inside the manhole cover to track various parameters such as water quality, leakage, and abnormal conditions. This data is then transmitted wirelessly to a central management platform for analysis and decision-making.
03
03
Smart manhole covers improve the efficiency of urban infrastructure by providing critical real-time data. They aid in early warning for potential issues, enhance personal safety by ensuring the safety of workers, and optimize management methods for sewage systems and pipe networks.
04
04
The cover can detect issues by using embedded sensors to monitor environmental factors such as water levels, pressure, and temperature. If any abnormal conditions arise, it sends an alert message to the management tool for immediate action.
05
05
Big data is crucial for analyzing the vast amounts of information collected from smart manhole covers. This analysis helps in identifying patterns, predicting maintenance needs, and optimizing asset management strategies for urban infrastructures.
06
06
Wireless communication allows smart manhole covers to transmit data in real time to a centralized management platform. This connectivity ensures timely updates on the status of manhole conditions, improving overall management efficiency and response times.
07
07
To prevent the valve from seizing or getting stuck due to scale buildup, most models automatically open and close slightly once a month. This keeps the mechanism free and ensures reliable operation.
