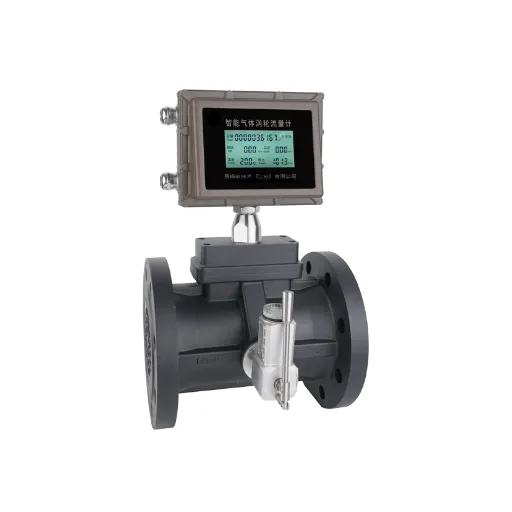

Intelligent Gas Turbine Flow meter
The Intelligent Gas Turbine Flow Meter is a velocity-type instrument used for measuring the flow rate of gas media. It consists of a turbine sensor and an intelligent converter, achieving measurement through the linear relationship between turbine rotation speed and flow rate. Suitable for clean gases such as natural gas, coalbed methane, and nitrogen, it features high measurement accuracy and low pressure loss. It is widely applied in fields such as gas transmission and distribution, and energy metering.
Key Features of The Intelligent Gas Turbine Flow meter
🎯 High Precision Measurement
Accuracy of ±1.0% R with excellent repeatability ≤0.2%, ensuring reliable measurement results.
📊 Wide Measurement Range
Broad turndown ratio adapts to scenarios with significant flow rate fluctuations.
🌡️ Real-time Compensation
Built-in temperature and pressure sensors enable automatic compensation for standard volume measurement.
⚡ Low Pressure Loss
Minimal pressure drop ≤0.03MPa significantly reduces energy consumption.
🛡️ Robust Protection
IP65 protection rating suitable for outdoor and hazardous environments.
💾 Large Data Storage
Permanent storage of 12 months’ monthly flow and 360 days’ daily flow data with power-off protection.
🔌 Dual Power Supply
Supports lithium battery and DC24V power with low battery alarm function.
Technical Specifications of The Intelligent Gas Turbine Flow meter
| Category | Parameters |
|---|---|
| Nominal Diameter | DN25 ~ DN300 |
| Accuracy Class | ±1.5% (±1.0% upon calibration) |
| Temperature Requirements | Medium Temperature: -20 ~ 80°C; Ambient Temperature: -20 ~ 70°C |
| Instrument Material | Body: 304 stainless steel or cast aluminum; Impeller: Anti-corrosion ABS or high-quality aluminum alloy; Converter: Cast aluminum |
| Applicable Media | Suitable for natural gas, coalbed methane, LPG, flare gas and other gases |
| Flow Range | See selection table for details |
| Pressure Rating | Aluminum alloy ≤ 1.6MPa, Stainless steel ≥ 1.6MPa |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Power Supply | DC24V, 3.6V lithium battery |
| Signal Output | Pulse signal, 4~20mA, RS485 |
| Communication Protocol | Modbus, HART protocol |
| Connection Method | Flange connection |
