Chilled Water Balancing: Ensuring Optimal Performance in Hydronic HVAC Systems
When hydronic HVAC systems are not balanced, there is a risk that building energy is used inefficiently, as the performance of the system and comfort of the equipment users is unpredictably altered. The foundation of these systems is the capacity of chilled water balancing. This comprehensive guide explores the importance and rationale for chilled water balancing as well as the challenges encountered and ways of eliminating wear and tear.

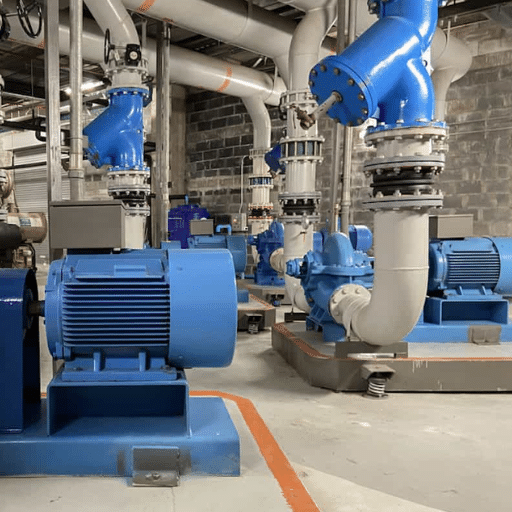

The Importance of Chilled Water Balancing
Adequate balancing of chilled water in systems is essential to maintaining system operating efficiency. This distribution avoids freezing and overheating in some areas, as each part of the system receives the appropriate amount of chilled water. The balancing also prevents wastage of energy and equipment, and saves the cost of energy and maintenance of the system.
Even in energy use and building performance, inefficiencies can occur when systems are unbalanced. It even goes on to embrace sustainability through a practice that strives to balance energy within the system. Balanced control of pumps, HVAC control valves and other equipment enhances the efficiency of systems.
Understanding Chilled Water Systems
Various cooling processes can be enabled by chilled water systems used for applications such as offices, industrial buildings, and hotels. The mode of operation of these systems can be summarized as the circulation of chilled water through a piped system to dissipate heat from the building. Usually, it involves chillers, pumps, cooling towers, and air handlers working simultaneously.
Main Elements and Their Roles
🔷 Chillers
In the central element of a chiller, heat is extracted from the water and de-chilled to about between 40 and 45 degrees F (4 to 7 degrees C) chilled water that is then extended out to the building.
🔷 Pumps
Circulating pumps circulate chilled water from the chillers to the different zones, providing cooling as required.
🔷 Cooling Towers
Placed outside the building, these dissipate the heat generated by the chillers into the surroundings, often using evaporative cooling principles.
🔷 Air Handling Units
These apparatuses help cool the air, thereby improving a building’s indoor temperature.
Efficiencies & Energy Statistics
- Efficiency of Energy Use: According to the U.S. Department of Energy (DOE), well-designed chilled water systems can conserve up to 35% more energy than standard systems.
- Effects on the Environment: The use of variable pumps and chillers has helped reduce energy use for cooling across many industries.
- Analytics: Modern and the most complex air sensors enable integration with state-of-the-art HVAC control valve,s thereby allowing optimization of how the system operates and generation of energy peaks to a much lesser extent.
Why Use Chilled Water Systems?
- Developed for large areas that require cooling where demands are dynamic, making them easily adjustable
- Elasticity: Engineers elaborate it as the ability to serve several blocks on a single plant
- Time tested: The more efficient the equipment the less costly it is; however, all equipment requires maintenance to remain functional within 20-30 years
The Role of Hydronic Systems in HVAC
Hydronic systems take precedence in heating and air-conditioning installations due to their energy efficiency and durability, especially when precise temperature control is needed. In these systems, water or another fluid is circulated to transfer heat, making them most preferable for the construction of both houses and offices.
Key Aspects and Advantages
- Energy Efficiency: Because water, as a heat-transfer medium, is far more efficient than air in standard systems, the hydronic system is highly energy efficient. According to studies, hydronic heating systems are far more energy efficient than their air distribution counterparts, achieving an average of 30% energy savings.
- Comfortable and Continuous Conditions: Hydronic systems maintain a stable temperature through even heat distribution. This mitigates the adverse effects of specific hot or cold regions and increases the rate of satisfaction with the occupant’s comfort level.
- Design Adaptability: These systems are designed to blend with various systems, including radiant floors, chilled beams, fan-coil units, and any flooring system. Their adaptability works well in both small houses and skyscrapers.
- Ease of Use: Hydronic systems are characterized by silent operation, unlike air-based HVAC systems, which require a fan to push air throughout the room. They are therefore very appropriate to use in public offices and healthcare facilities.
- Benefits to the Environment: Hydronic systems alleviate existing pressures and promote energy efficiency. They also have the capacity to support sustainability, as they can be easily integrated with alternative energy systems such as solar or geothermal.
Why Proper Balancing is Crucial
Balanced hydronic systems help keep the system’s performance at its best, ensuring low energy use and user comfort. Without balancing, systems may operate inefficiently, resulting in ineffective heating and cooling, higher energy bills, and equipment wear.
Five Important Points with Statistical Evidence
1. Efficient Utilization of Energy
The industry has found that, in extreme cases, a poorly balanced hydronic system can waste up to 20% more energy than a properly balanced one. This is because, with proper balancing, every element receives only the required flow from the hydronic system, and no energy is wasted.
2. Increase in Occupants’ Comfort
Balancing issues may improve temperature distribution, with some units excessively warm and others cold. A comfortable internal environment is achieved through temperature control. Proper balancing eliminates uneven temperature.
3. Lowering the Costs of Operating
An optimally balanced hydronic system can also save money. On average, studies show that properly balanced systems can reduce monthly bills by 15-25%.
4. Extended Equipment Life Span
Systems that are out of balance tend to overburden pumps, valves, and other components, leading to premature wear or failure. Proper balancing protects equipment from damage, thus lowering maintenance costs.
5. Increased System Efficiency
For the system to work effectively and efficiently, balancing is required. Such a strategy is even more necessary in complex systems, such as buildings with multizone operation, where a specified flow value is required in each zone for efficient operation.
Benefits of Proper Chilled Water Balancing
| Benefit | Impact | Statistical Evidence |
|---|---|---|
| Decreased Energy Intensity | Avoids irrational energy use through control of the concentration of chilled water | 15-20% reduction in operational costs |
| Improved Comfort | Regular temperatures are maintained across all buildings, eliminating hot and cold zones | Significant improvement in occupant satisfaction |
| Increased Equipment Lifetime | Pumps and components endure less stress, cutting down on premature degradation | 10-15% increase in projected life expectancy |
| Minimized Maintenance | Components like HVAC control valves need less frequent servicing | Reduced service costs and fewer mechanical problems |
| Enhanced System Efficiency | System functions as anticipated with specified flow rates to each zone | Critical for multi-zone buildings requiring constant cooling capacities |
Improved Energy Efficiency
Perhaps the most crucial advantage that modern HVAC systems and well-tailored flow controls provide is the enhanced energy performance. It is estimated that buildings are responsible for about 40% of the world’s energy consumption, of which, almost half is consumed by HVAC systems.
Advanced Energy-Saving Solutions
- Variable Refrigerant Flow (VRF) Systems: Can ensure advanced energy-conservation techniques leading up to about 30-40% over conventional systems
- Smart Zoning Controls: Sensor-formatted control valves catch the direct occupancy of a space in real-time and regulate heating or cooling to minimize energy wastage
- High SEER Compressors: Energy-efficient features that utilize energy that would otherwise be lost
- Building Automation Systems: Could result in a progressive energy performance improvement as high as 50%
Environmental Impact: Lower electricity use means fewer greenhouse gas emissions, which is one of the paramount solutions being pursued globally to help ensure favorable outcomes in climate change.
Enhanced Comfort Levels
Contemporary HVAC systems prioritize not just energy saving, but also perfectly achieving indoor comfort levels. With precise calculation, the degree of heating or cooling in every room can be adjusted thanks to advances in technology such as variable-speed motors, smart thermostats, and zoned heating and air-conditioning systems.
Key Comfort Technologies
🌡️ Zoning Systems
Provide better temperature management by 30%, assisting with thermal imbalances present in conventional systems
💧 Humidity Control
Keeping indoor humidity values inside the range of 30%-50% reduces issues like dry air, molds, and airborne allergens
🔬 HEPA Filters
Capable of trapping and arresting 99.97% of air particulates up to 0.3 microns for improved health conditions
Prolonged Equipment Life
HVAC system designs today incorporate the latest technologies to extend their useful life. The combination of routine servicing and innovations such as variable-speed motors or innovative systems also reduces stress on machine parts and progressively enhances efficiency.
Life Extension Factors
| Technology/Practice | Impact on Equipment Life |
| Consistent Service | Increases useful life by 40%-50% |
| IoT Sensors for Predictive Maintenance | Reduces interruptions by 50%, increases useful life by 25-30% |
| HEPA Filters | Minimizes dust and debris, reduces stress on motors and fans |
💡 Key Insight: Consolidating periodic servicing with advanced equipment allows property owners to have the best use of HVAC systems and lower overall operating expenses.
Common Challenges in Chilled Water Balancing
Balancing of chilled water is essential for HVAC systems as it offers superior cooling and energy conservation. However, there exist several challenges that if not adequately managed, affect the system.
1. Non-uniform Flow Patterns
Non-uniform chilled water flow in different hydronic circuits or zones is a common problem. Such an imbalance could lead to some areas being cooled excessively while others remain warmer than expected.
Impact: Research shows that energy usage can be 15-20% higher than required, as the system will operate for longer periods.
2. Difficulty in Achieving Manual Balancing
It can be very labor-intensive to manually balance the chilled water system, as each adjustment must be made at numerous valves. While the differences may be minor, slight deviations in flow can create significant differences in actual flow.
Challenge: Altering occupancy rates or usage patterns within a building may throw off the balance, requiring frequent recalibrations.
3. Variations in Pressure
Pressure variations that are as a result of the systems of variable flows, poor pipe design, among others, can cause instability in the system.
Consequence: Poor control of pressure differences in large buildings could lead to energy inefficiency and strain equipment beyond expected wear.
4. Absence of Continuous Monitoring
In enclosed spaces, particularly where continuous monitoring is not available, chilled water balancing cannot be easily mitigated or resolved.
Solution Potential: Industry experts report that real-time tracking systems can increase balancing efficiency by as much as 30% for airflow rate, temperature, and pressure changes.
5. Ancient Facilities
Many older and existing systems will, in most instances, not have the complex controls or valves that are still useful for balancing.
Consideration: It is not only expensive to update all systems with the latest technology, but also essential for optimal performance.
📊 Evidence-Based Interventions
- The U.S. Department of Energy states that performing dynamic balancing or pressure-independent valve installation has been associated with a decline in energy consumption of 18-22%
- Enhanced control systems equipped with building management systems can improve efficiency by 25-30% based on increased accuracy and minimal interventions
Inaccurate Flow Measurements
In any chilled water system, flow measurement plays a key role. If the measurement is not accurate, efficiency will be compromised: energy usage will be high, and the system will become imbalanced.
Common Causes of Inaccurate Measurements
- Improper installation of flow meters
- Wearing out of flow sensors over time
- Energy losses of 5%-20% in large commercial buildings are attributed to maldistribution
✅ Modern Solutions
Digital Flow Sensors
Provide an extensive range of precision and reliability with accuracy of ±1%
Ultrasonic Techniques
Capable of achieving high accuracy while managing risks and errors effectively
IoT Integration
Allows real-time management and maintenance schedules in advance for system efficiency
Obstructions in the Hydronic System
Barriers to fluid flow in chilled water systems can present several logistically inconvenient problems; these include inefficient and uneven heating or cooling as well as costliness. Such hindrances are caused mainly by residues, scales or air locked in the goal-oriented system.
Common Obstruction Sources
- Scaling inside pipes: Reaction with water, causing deposits
- Corrosion: Inside pipes caused by water reaction
- Air locks: Leading to pressure differentials and uneven fluid distribution
- Deposition from fittings: Attached to pipes over time
⚠️ Critical Impact
A 1 millimeter scale on heat exchangers reduces their efficiency by 7%. This is because more energy is drawn from the system to achieve the desired temperatures.
🔧 Prevention Strategies
| Strategy | Benefit |
|---|---|
| Regular System Cleaning | Prevents buildup of scale and debris |
| Magnetic Filters | Traps debris effectively |
| Air-Removing Devices | Eliminates airlocks and pressure differentials |
| Smart Flow Sensors | Pinpoints blockages for quick intervention |
Balancing Valve Issues
Hydronic systems depend on balancing devices to achieve the desired flow distribution. These devices, when selected, installed, or maintained inappropriately, can cause inefficiencies and reliability issues in the system.
❌ Inappropriate Valve Dimension
Incorrect installation could reduce flow below or above the maximum control capacity. Oversized valves result in low throttling, while undersized valves experience high pressure drop.
❌ Manual Balancing Challenges
This method entails fine-tuning and adjustments, which are commonly prone to human error, especially in demanding applications and systems of complex or variable demand.
❌ Scales and Debris Buildup
The presence of scale or debris blocking openings inside valves can hinder productivity. Requires proper system management to address.
❌ Wear and Tear Factors
Repeated fine-tuning or actuating internal elements over prolonged periods can result in deterioration of valve parts, reducing precision and functionality.
❌ Monitoring Capabilities Gap
Classical static balancing valves generally lack real-time recording of performance parameters or alarm systems, meaning inefficiencies remain undetected for extended periods.
Innovative Solutions and Technologies in 2025
2025 is a year of radical change for hydronic systems, primarily due to the development of advanced technologies and efficient, economically affordable and automated techniques. Thanks to the enhancement of smart tools and the synergy of IoT (Internet of Things) and wireless technology, the operation and monitoring of hydronic systems has changed.
1. Smart Balancing Valves and IoT Integration
The latest generation of balancing valves has sensors with IoT capabilities, able to feed real-time sample data readings for flow, pressure, and temperature levels. These are the most advanced equipment, which balance quite well with energy loss kept at its lower limit.
📊 Impact: The application of balancing systems based on IoT can reduce energy consumption by 25-30% compared to casual systems.
2. AI-Powered Predictive Maintenance
Artificial Intelligence (AI) is transforming how maintenance is performed in hydronic systems. AI-based algorithms have the ability to forecast process failures before they occur by analyzing operating data.
📊 Impact: Minimizes maintenance expenses by around 20% and enhances system availability by 30%
3. Incorporation of Renewable Energy Sources
Moving into 2025, hydronic systems show an affinity for renewable sources such as geothermal and solar thermal energy. These systems are structured to reduce greenhouse gas concentrations without sacrificing energy consumption.
📊 Impact: Can help decrease carbon concentrations in commercial settings by 40%-50%
4. Improved Valve and Pipe Materials
The possibilities of technology enable the creation of progressive materials for valves and pipes that last more extended without needing to be replaced, durable and wear-resistant. The use of composites and superalloys increases the service life of parts.
📊 Impact: Reduction of overall heat losses in systems to an extent of 15%-20%
5. Extended Execution of Digital Twins
The development of the “digital twin” has been implemented with great effect in hydronic applications. This is a complete digital model that allows modeling the entire system, enabling operators to adjust parameters without physically changing anything.
📊 Impact: Reduces time taken for system optimization by 50% and saves energy up to 10%
Advanced Balancing Valves
Advanced balancing valves are widely used in contemporary hydronic systems for flow control and system performance optimization. The valves developed ensure that water is distributed in optimal amounts throughout any heating or cooling system to maximize energy savings and operational economics.
Key Performance Metrics
| Feature | Benefit |
|---|---|
| Energy Consumption Reduction | 35% average decrease in HVAC systems |
| Dynamic Flow Control | Constant flow rate regardless of pressure changes |
| Installation Time | 20% less time compared to conventional solutions |
| IoT Integration | Real-time monitoring and predictive maintenance alerts |
| Environmental Compliance | Supports LEED and BREEAM green building standards |
These advanced balancing valves do not compromise efficiency and precision with the development of a user-friendly design, making them crucial for the advancement of sustainable hydronic systems.
Smart HVAC Controls and Automation
Technological advancements in smart HVAC controls and systems enable more efficient management of building temperatures, with lower energy use, better comfort, and lower operating costs. These devices possess integration with sensors, big data analytics as well as real-time surveillance in making an innovative environment accordingly for users.
⚡ Energy Usage Optimization
Utilizing smart controls, algorithms observe and oversee energy use almost instantaneously, ensuring heat and cool settings are at their optimum states.
📱 Remote Monitoring and Control
Managers can manage HVAC equipment via mobile applications, addressing problems as they arise and improving system reliability.
🔮 Predictive Maintenance
Automation systems recognize patterns for potential breakdowns, using available data to ensure machine availability and minimize downtime.
🏢 Zoning Capabilities
Innovative HVAC systems enable separate zone control to help manage comfort levels and keep all sections comfortable without energy loss.
🔗 BMS Compatibility
Compatible with Building Management Systems for optimal performance, including reduction of energy use and compliance with standards like LEED.
Case Studies of Successful Implementations
1. 🏢 GreenTech Business Center – Reduced Energy Costs
GreenTech Business Center adopted a high-tech HVAC system with self-regulating climate control and a live monitoring system.
Results:
- Energy consumption decreased by 25% within a year
- Integrated with the building management system for easy regulation
- Met the necessary standards for LEED Gold certification
2. 🎓 University Campus – Streamlining HVAC Equipment
A famous campus establishment replaced outdated HVAC equipment with IoT-controlled systems. Innovative sensor technology was introduced in teaching rooms, the library, and student dormitories.
Results:
- 20% reduction in energy consumption annually
- Annual savings of $500,000
- Improved indoor air conditions and enhanced learning quality
3. 🛍️ Retail Chain – Distribution Cost Savings
One gigantic retail chain installed innovative HVAC systems in 100 of its stores, employing predictive maintenance and cooling systems that adjust to current demand.
Results:
- Limited energy spending by 15%
- Reduced equipment failures through early problem identification
- Eliminated customer discomfort due to faulty equipment
4. 🏥 Healthcare Facilities – Improving Patient Comfort
One of the largest hospitals in a major city installed an innovative HVAC control valve system to meet demand for optimal temperature and air quality control.
Results:
- Achieved 30% energy reduction
- Maintained equipment in accordance with strict air quality protocols
- Rooms are cooled or heated based on occupancy for greater patient comfort
5. 🏙️ Commercial Towers – Refurbishing Systems
A high-rise office in New York City modernized its aged heating and air conditioning with complete automation and AI-based optimization.
Results:
- Energy transmission capacity improved by 2.5x
- Decreased emissions by 1,200 tons per year
- Met New York City energy standards
Expert Tips for Maintaining Optimal System Performance
✅ Conduct Routine System Inspections
Plan semiannual checks to catch potential problems such as leaks, wear, or existing inefficiencies.
Impact: Up to 20% enhancement in energy efficiency
🌡️ Install Smart Thermostats
Installation of intelligent thermostats for temperature control based on changes in occupancy and outdoor temperature.
Impact: Reduces 10% of energy demand within one year
🔧 Clean and Replace Filters Regularly
Blocks in clean air filters restrict airflow; hence, more strength is required. Change filters every 1 to 3 months.
Impact: Brings down energy use by 5%-15%
🔨 Improve System Performance
Ensure that ductwork is sealed correctly. Studies suggest that proper sealing significantly increases efficiency.
Impact: About 20% higher efficiency, especially in older structures
🤖 Acquire Predictive Maintenance Equipment
Use AI-enabled systems to identify likely failures in advance, preventing unscheduled breakdowns.
Impact: Reduced machine idleness by up to 30%
Regular System Checks and Maintenance
In any program, HVAC systems must be maintained appropriately regularly to prolong their service life and increase their effectiveness.
Essential Maintenance Checklist
| Maintenance Task | Description | Efficiency Impact |
|---|---|---|
| Changing Filters | Clogged filters prevent adequate air circulation, forcing the unit to work overtime | 15% increase |
| Maintenance of Coils | Clean coils on condensers and evaporators annually to maintain proper working capability | 10%-25% reduction in power use |
| Install Accurate Thermostats | Check calibration to prevent unwanted temperature increases and operating costs | 10% reduction in costs |
| Check Refrigerant Levels | Low refrigerant or pressure-induced leaks can cause stress on the system | 20% enhancement |
| Check Electrical Connections | Bad or loose wires can result in malfunctions or safety issues | Prevents non-routine interruptions |
Implementing Manual Balancing Techniques
When applying manual balancing approaches, it is essential to ensure the uniform distribution of air throughout the system. To achieve this, airflow rates at each system element are determined, and the values are adjusted by the dampers or diffusers until the desired balance is obtained.
Manual Balancing Process
- Determine airflow rates at each element of the system
- Adjust dampers or diffusers until the desired balance is obtained
- Monitor and reassess as imbalances may develop over time
- Document settings for future reference and maintenance
⚠️ Note: Working without the aid of an HVAC control valve may seem inconvenient and tiresome. The restrictive nature of friction losses and gravity contributes to poor flow patterns in the transport system. Many installation technicians resort to balancing of the air distribution system using diffusers.
Monitoring for System Efficiency
To ensure the HVAC system’s optimal performance, the efficiency of such systems must be monitored. The primary areas of concern in this regard are performance, energy consumption, and building comfort.
Key Performance Indicators
- Energy Consumption: Track usage patterns and identify anomalies
- Temperature Levels: Monitor across all zones for consistency
- Air Flow: Measure and ensure proper distribution
- System Pressure: Maintain within optimal ranges
📊 Critical Statistics
40%
The energy consumed by HVAC systems on average
20%
Efficiency increase possible with proper equipment maintenance
Modern Advances: With sensor technology and IoT-supported HVAC management systems, equipment diagnosis is less troublesome as inefficiencies due to clogged air filters and holes in ducts can be corrected automatically. AI analytics pinpoint and correct irregularities faster, ensuring system functionality is retained at optimum levels.
Frequently Asked Questions (FAQ)
❓ How is chilled water balancing executed, and why is it important?
It is a procedure to ensure that, in a chilled water network, the flow of chilled water is evenly distributed across the system. This is crucial for keeping the HVAC operating smoothly, as it enables achieving target temperature and energy use levels with minimal repair issues.
❓ In what manner will balancing the chilled water layout affect the HVAC system equipment?
Balancing the chilled water layout has a direct bearing on the HVAC system equipment efficiency. In a balanced design, chilled water can reach various elements of the system, such as coils and air handling units, evenly, enabling them to operate at their best and meet cooling needs.
❓ How to achieve chilled water balancing?
Water flow balancing in chilled water systems is usually done manually or with balancing valves. Manual balancing is practiced by adjusting valves at specific time intervals to allow proper water circulation within desired limits. Balancing valves are designed to enhance practicality by automatically regulating flow.
❓ In what ways can flow meters assist in balancing the chilled water system?
Flow meters are used to evaluate water flow rates in chilled water systems. They measure liquids and observe how the system is working by monitoring the streams flowing directly through it, providing essential data for proper balancing.
❓ How does water balancing involve the use of valves?
Valves play an essential part in chilled water balancing by providing a means of controlling chilled water flows within the system. Balancing valves are used to reduce pressure across a coil and an air handling unit, helping maintain a balanced regime in the cooling system.
❓ How does a pressure gradient influence the flow of cooled water?
Differential pressure is key to the proper operation of a chilled water system. In the event of an excessively high or low pressure drop within the system, chilled water flow is impaired, resulting in an unbalanced system that cannot provide the required chilling to its occupants.
❓ How does unbalance in a system translate to energy usage and thereby cost?
Inadequate regulation in a chilled water system will inevitably result in higher consumption rates, as the pumps will have to overwork due to non-uniform flow. This not only increases costs but can also accelerate the wear and tear on HVAC machinery faster than expected, underscoring the need for balancing during commissioning.
❓ Is commissioning all that important in chilled water balancing?
The chilled water balancing procedure cannot be considered proper without commissioning involvement. The term commissioning indicates that the system will be checked for issues and balanced as necessary after everything is fitted on-site. When commissioned properly, every chilled water system meets a building’s cooling requirements without altering the design and performance parameters.
References
📚 OAKTrust Repository – Texas A&M University
- A Simple and Quick Chilled Water Loop Balancing – Discusses traditional methods and innovative approaches to balancing chilled water loops
- A Method for Simple and Quick Balancing of Chilled Water Risers – Focuses on balancing chilled water risers in large medical facilities
📚 Carnegie Mellon University Facilities Management
Typical CMU Chilled Water Bridge Design – Provides insights into chilled water supply temperature control and system design
