Mastering Valve Sizing and Selection for Precision Control
The process of valve sizing and selection serves as the main element which enables industrial systems to achieve precise control. The selection of valves becomes essential for fluid flow and pressure and temperature management because it determines system performance and operational reliability. The blog post provides a structured approach to valve sizing because it presents essential aspects that need evaluation and shows optimal practices for selecting valves. The content will help you understand the method which uses valve selection to improve system performance and decrease system downtime and prevent expensive mistakes.

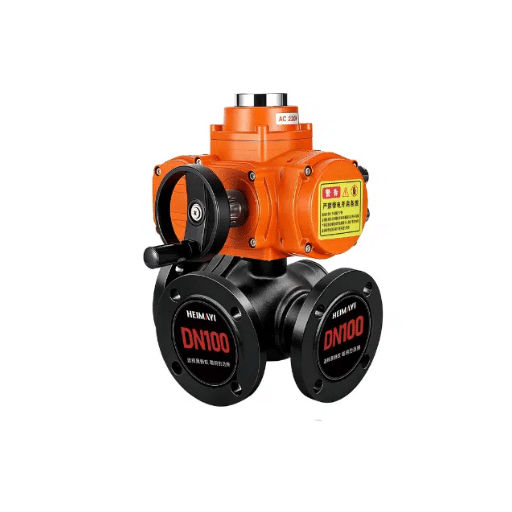

Introduction to Valve Control
Valve control refers to the process of regulating the flow, pressure, or direction of fluids that include liquids, gases, and slurries that move through a system. Valves are mechanical devices that control fluid flow by opening and closing, or by creating partial blockages. Effective valve control enables systems to operate securely, efficiently, and reliably, making it essential for manufacturing, energy, and water management companies. Valve control knowledge enables operators to address leaks, pressure loss, and efficiency issues that affect system operations.
The Importance of Precision Control in Industrial Applications
Precision control enables industrial systems to function at their best while generating the least amount of waste which results in better performance and reduced operational expenses. Precision control establishes its importance through five key details which data points demonstrate its value.
1Enhanced Productivity
The control systems maintain accurate flow rate and temperature and pressure control which minimizes operational interruptions while increasing production capacity. Advanced precision control systems enable industries to achieve productivity increases that reach 20%.
2Energy Efficiency
The accurate control system prevents resource and energy waste because it maintains proper resource levels. Energy plant operators achieve energy savings between 15% through optimized valve systems which result in lower operational expenses.
3Safety and Risk Management
Precision control establishes system stability which stops problems such as overpressure and overheating and dangerous leaks from occurring. Data shows that 30% fewer work-related accidents happen in industries which use effective control systems because equipment failure results in dangerous situations.
4Improved Product Quality
The manufacturing process needs continuous control because it helps maintain product quality at required standards. The pharmaceutical industry uses precise control mechanisms to meet high-quality standards which help to decrease defective product batches by 10%.
5Cost Savings
Precision control generates essential financial benefits because it decreases waste and downtime and repair expenses. Highly automated control systems in manufacturing reduce maintenance costs by more than $ 50,000 per year for companies.
The industrial sector depends on precision control to improve operations which protect both worker safety and business results.
Risks Associated with Improper Valve Sizing
The industrial systems face multiple issues because of valve sizing problems which create both operational problems and safety hazards and force costly repair operations. The document identifies specific risks associated with incorrect valve sizing, based on recent studies that have demonstrated this.
⚠️ Reduced Efficiency and Increased Energy Costs
A small valve creates excessive friction together with pressure drop which results in system efficiency loss. An oversized valve leads to operational failures because it creates control problems together with cycling issues. The reports show that improperly sized valves cause industrial systems to consume 20 percent more energy which results in increased operational expenses.
⚠️ System Instability and Poor Flow Control
The processes become unstable because valves are incorrectly sized, preventing precise flow-rate control. The oversized valve operates too fast for its opening and closing mechanism which creates pressure surges together with water hammer effects. The research shows that 30 percent of pump and pipeline failures are caused by improper valve selection and sizing. Equipment damage and production interruptions result from this unstable condition.
⚠️ Accelerated Wear and Tear
The system components experience increased wear and tear because improper valve sizing creates excessive stress on them. The oversized valves cause cavitation, leading to erosion and premature valve failure. The industry data shows that undersized valves deteriorate three times more quickly than valves that have been correctly sized, which requires organizations to conduct constant maintenance and replacement activities.
⚠️ Safety Hazards
Valve size estimation errors create dangerous conditions by leading to excessive pressure buildup and hazardous fluid leaks that pose security threats. The chemical industry incurred over $30 million in global damages in 2022 due to valve spillage accidents. Proper valve sizing exists as a fundamental requirement for both maintaining safety standards and preventing hazardous incidents.
⚠️ Compliance and Regulatory Fines
The installation of improperly sized valves creates noncompliance issues which result in regulatory agencies imposing financial penalties on organizations. The oil and gas industry is subject to strict regulations, and noncompliance can result in financial penalties totaling millions of dollars annually. The correct valve-sizing process ensures systems comply with legal requirements while preventing regulatory penalties.
The selection process for valves requires a comprehensive analysis that includes assessing flow rate and pressure requirements, as well as studying system behavior. The use of automated tools together with engineering guidelines enables organizations to achieve maximum valve functioning which leads to cost savings while preserving overall system security.
Key Parameters for Sizing a Valve
The process of valve sizing requires assessing multiple critical parameters that determine system performance, safety, and product lifespan. The following section presents the primary parameters which require evaluation through their specific descriptions.
Flow Rate (Cv or Kv)
The valve flow coefficient (Cv in imperial units or Kv in metric units) quantifies the valve’s flow capacity under specified pressure conditions. System performance suffers when organizations miscalculate flow rates, leading to oversized and undersized valves. A control valve typically operates within a Cv range from 0.1 to greater than 100, depending on application requirements.
Operating Pressure and Pressure Drop
Valves have specific inlet and outlet pressure limits established during their design process. The system energy efficiency depends on pressure drop because it represents a vital component that controls energy consumption in the system. High-pressure drop conditions waste energy, while low-pressure drop conditions create problems with flow control. The guidelines establish an optimal pressure drop range that should be maintained between 35 percent and 50 percent of the total system pressure for control functions.
Temperature Range
Valves receive rating for specific temperature ranges based on their material definitions which include carbon steel (up to ~800°F/426°C) and stainless steel (up to ~1,500°F/815°C). The selection of valve material requires a material-temperature match, as this decision affects both safety and valve service life.
Fluid Properties
The properties of the fluid, including viscosity, specific gravity, and particulate content, significantly affect how valves operate. High-viscosity fluids require valves with higher Cv values because they must overcome flow resistance. The use of abrasive or corrosive fluids requires valves made of special materials, such as Hastelloy, titanium, or Teflon-lined valves.
Valve Type and Function
The valve function determines the selection process because it must serve either throttling, on-off, or control-flow direction. The most common valve types include ball valves, which provide rapid shutoff, globe valves, which enable precise flow control, and butterfly valves, which require low pressure drop.
System Dynamics
The complete sizing process requires consideration of transient conditions together with cyclic use, vibration, and noise levels. The Computational Fluid Dynamics (CFD) method enables simulation of these conditions to support valve selection.
Industry Standards and Regulations
The valves must achieve compliance with the standards established by the American National Standards Institute (ANSI), the American Society of Mechanical Engineers (ASME), and the International Organization for Standardization (ISO). These standards ensure reliability and compliance for diverse industrial applications.
📊 Data Example for Visual Impact
According to a case study, the improper sizing of valves in a chemical plant resulted in annual energy losses of approximately $50,000 due to inefficiencies. By resizing the valves and optimizing flow rates, the plant achieved a 40% reduction in operational costs within the first year. This underscores the importance of accurate valve sizing in maximizing both performance and cost savings.
Valves play a critical role in maintaining the equilibrium of industrial systems, and getting these parameters right ensures operational excellence.
Understanding Flow Coefficient (Cv)
Engineers use the flow coefficient (Cv) as an essential design parameter to determine the maximum flow capacity of valve systems. The valve will permit 31 gallons of water to flow through it when it is open at a specific position, at a pressure below 1 psi at room temperature. The coefficient determines mandatory flow specifications that enable industrial systems to operate optimally while meeting safety requirements.
The General Formula
Q = Cv × √(ΔP / SG)
Where:
- Q is the flow rate in gallons per minute (GPM).
- Cv is the valve flow coefficient.
- ΔP is the pressure drop across the valve in psi.
- SG is the specific gravity of the fluid relative to water.
Factors Affecting Cv
Several factors influence the Cv of a valve, such as:
- Valve Design: Different valve types (e.g., globe valves, ball valves) have different Cv values even for the same size.
- Fluid Properties: Changes in fluid viscosity and density can impact the Cv calculations.
- Pressure and Temperature: Operating conditions can affect fluid dynamics which results in different actual flow rates.
Why Cv Matters in System Design
✓ Optimizing Efficiency
By selecting valves with the appropriate Cv values, systems can operate at peak efficiency, reducing energy consumption.
✓ Preventing Overload or Underperformance
Undersized or oversized valves with incorrect Cv can lead to operational challenges, such as excessive noise, vibration, and wear.
✓ Cost Savings
Proper Cv calculations help minimize waste and prevent unnecessary costs associated with incorrect flow.
Example Calculation
Assume a system requires a flow rate of 200 GPM with a fluid of specific gravity 0.9 under a pressure drop of 4 psi. The formula requires execution as follows:
Cv = Q / √(ΔP / SG)
Cv = 200 / √(4 / 0.9)
Cv ≈ 200 / 2.11 ≈ 94.79
The system requirements can operate efficiently when a valve has a Cv value of approximately 95.
Modern Tools for Cv Analysis
Digital technology has progressed to the point where simulation tools and automated software provide streaming capabilities which calculate and identify suitable Cv values according to particular applications. The tools use complex variables which include pressure changes and temperature changes to achieve their maximum operational efficiency.
Proper Cv selection leads to improved system reliability because it decreases operating costs. The selection extends the operational lifespan of industrial equipment.
Calculating Pressure Drop and Its Impact
The design and operation of fluid systems depend critically on pressure drop because pressure drop affects three aspects which include energy efficiency and system performance and operational costs. The following five essential aspects and data points must be included in pressure drop calculations:
Flow Rate (Q)
Liquid flow rate which measures gallons per minute (GPM) or liters per second (L/s) determines how fast liquid moves through the system and causes pressure reduction throughout the system.
Pipe Diameter and Length
The diameter and length of the pipeline determine how much resistance fluid flow encounters when moving through the system. Pipes which have narrower diameters or longer lengths will create more friction loss which results in higher pressure drops.
Fluid Properties
The system friction and turbulence behavior depends mainly on two fluid characteristics which are viscosity and density. High-viscosity fluids usually experience greater pressure drops.
System Components
The entire system experiences pressure drops because valves and fittings and elbows and filters function as flow resistance elements. The number and type of components need careful consideration.
Operating Temperature and Pressure
Temperature and pressure changes cause fluid properties to undergo changes. Higher temperatures lead to viscosity reduction which results in decreased pressure drop while pressure alterations cause fluid density changes.
The system operators achieve energy efficiency through proper system design because the system runs continuously without performance failure.
Other Essential Parameters for Valve Sizing
Engineers must assess multiple factors to determine the correct valve dimensions which will guarantee operational safety and system efficiency and dependable functioning. The following elements require special attention because they hold critical importance to the process.
Valve Sizing Based on Flow Coefficient (Cv)
The flow coefficient (Cv) measures the capacity of a valve to allow fluid flow. The Cv value requires precise calculation because it depends on two factors which include fluid density and viscosity plus system pressure differential. The Cv value for water systems indicates how many gallons per minute will flow through a valve which experiences a 1 psi pressure drop.
Example Calculation:
The system requires 50 GPM of flow while experiencing a 4 psi pressure drop. The formula determines the Cv value which operates as follows:
Cv = Flow Rate (GPM) / √(Pressure Drop (psi))
Cv = 50 / √4 = 25
Pipe Velocity and Erosion Considerations
Excessive fluid velocity in a valve can lead to erosion, noise, and vibration. The industry standards recommend that organizations should keep their liquid velocities below 10-15 feet per second and their gas velocities below 20-30 feet per second. The organization should maintain these velocity limits to achieve two objectives which include extending valve life and stopping operational problems from occurring.
Reynolds Number for Flow Regime Identification
The Reynolds number helps identify whether the flow is laminar or turbulent, which affects valve performance. Systems with Reynolds numbers below 2000 typically exhibit laminar flow, whereas values above 4000 indicate turbulent flow. The flow conditions in a system that experiences turbulent flow require valves which can adapt to changing flow conditions.
Compressible vs. Non-Compressible Fluids
Compressible fluids require additional calculations for gas flow through the valve because their pressure and volume undergo changes. The critical pressure ratio serves as an essential factor which maintains valve performance by preventing choked flow from occurring.
Temperature Profile Across the Valve
Temperature changes create important effects on both valve materials and fluid movement. Engineers need to select materials which will maintain their shape and structural integrity when they handle extreme temperatures. The cryogenic applications require valves to maintain temperatures which reach as low as -320°F through the use of special seals and insulating components.
Standards and Certifications
The valve selection process requires engineers to consult existing standards which include ASME and API and ISO. The standards specify both performance requirements and safety standards and requirements for product compatibility with other systems.
The operators use additional parameters to assess flow conditions which enable them to choose valves that meet their operational requirements while increasing system efficiency and decreasing operational expenses and extending equipment lifespan. Advanced computational tools and industry-specific guidelines further facilitate accurate valve sizing and system optimization.
Common Pitfalls in Valve Selection
System designers must choose their valves with great care because they need to make correct choices to avoid problems which will reduce system efficiency and lead to complete system failure. The following list shows the most common mistakes people make when they choose valves for their applications.
❌ Ignoring Operating Conditions
Engineers make a common error when they choose a valve without understanding the complete operating conditions which include pressure and temperature and flow rate. A valve designed for general purposes may not perform well under extreme temperatures or pressures, leading to premature wear or failure. Studies show that industrial equipment experiences unplanned downtime during 30% of its operational time because valves have incorrect pressure ratings.
❌ Misjudging Flow Characteristics
The main problem occurs when people try to operate a valve while its specifications do not match the actual flow requirements. The use of an inappropriate valve flow coefficient (Cv) leads to control problems and equipment malfunction and operational noise problems. The system efficiency declines when valves used for high flow operations become improperly sized because they create pressure drops and turbulence. The use of advanced dynamic simulation tools has become essential because it helps prevent mismatches which occur during the planning stage.
❌ Not Accounting for Material Compatibility
People tend to make the mistake of choosing valve materials which do not match the specific media they handle. Corrosion and chemical degradation and erosion damage occur when the wrong material is used. The oil and gas sector reports 20% of valve-related failures occur because the materials used do not match the transported medium which highlights the importance of selecting appropriate materials such as stainless steel and brass and specialized alloys.
❌ Underestimation of Environmental Factors
The lifespan and performance of valves suffer when people fail to recognize environmental factors which include dust and moisture and UV radiation and extreme climate conditions. The safety of hazardous location valves becomes endangered when companies fail to implement explosion-proof and weatherproof designs.
❌ Neglecting Maintenance and Lifecycle Costs
Operators who choose low-cost valves for their initial expenses will face more maintenance work and system downtime in the future. A report from a major energy sector study indicates that spending on maintenance often triples when non-durable valves are used in highly demanding applications. Purchasing products based on lifecycle costs instead of initial costs will produce better financial savings throughout the entire product lifespan.
❌ Poor Alignment with System Automation Requirements
The increasing need for system automation and Industry 4.0 implementation requires valves to work together with control systems. Valves which do not work with automated actuators and sensors and HART and Modbus signal protocols will cause operational disruptions. Process industries lose 25% of their operational efficiency because they fail to implement proper valve-actuator matching solutions.
The selection process becomes more effective when operators use detailed planning and simulation and industry standards to identify all common errors. The use of modern engineering tools enables organizations to reduce risks while achieving their desired outcomes because they maintain complete awareness of system needs.
Identifying Poor Valve Sizing Practices
The multiple methods which valve sizing uses create operational challenges and mechanical failures together with operational blockages. The following section presents five frequently used incorrect valve sizing methods which demonstrate their respective impacts.
The elimination of these incorrect practices enables operators to achieve better results while reducing maintenance costs and achieving greater operational reliability.
Consequences of Inadequate Valve Selection
The system encounters faults in its operations because operators choose the wrong valves for their work. The following section presents consequences which business research has established through their findings and industry information.
⚠️ System Downtime
Unplanned stoppages occur when valves are selected through improper methods which lead to their early breakdown or weak performance. Equipment failure stands as the main reason behind 44% of plant downtime according to research which identifies valves as a common source of problems. The operational downtime results in both productivity and revenue losses for the business.
⚠️ Energy Inefficiency
The system experiences increased energy consumption because the incorrect valve selection creates two system choke points and generates excessive pressure loss. The use of improperly sized control valves raises operational costs by 10-15% according to research because it increases the amount of work required from pumps and compressors.
⚠️ Leakage and Safety Risks
Valves which lack the proper design for extreme temperature and pressure conditions become vulnerable to leakage. The Occupational Safety and Health Administration (OSHA) reports that machinery failures cause approximately 20% of industrial accidents with valve malfunctions serving as a common reason for these incidents. The leaks which occur create dangerous chemical spills that damage the environment and put workers at risk.
⚠️ Higher Maintenance Costs
Valves that do not match their system requirements experience faster damage which requires continuous system repairs. The industry surveys demonstrate that companies which select valves that perform poorly experience a 40% increase in maintenance expenses.
⚠️ Cavitation and Erosion
Valves face cavitation danger when they function beyond their designated pressure and flow limits. The process of cavitation leads to pitting and material erosion which decreases the operational lifespan of valves. Studies show that cavitation causes 30% of valve failures in power generation and chemical processing systems according to research.
⚠️ Process Contamination
Food processing and pharmaceutical industries face contamination risk because valve material does not match process fluid requirements. Non-compliant valve materials will degrade through time which leads to chemical contamination of the medium and thus puts product quality and safety at risk.
⚠️ Regulatory Fines and Legal Liabilities
The improper valve operation through incompatible material usage leads to industry regulation violations which result in monetary penalties. Regulatory agencies such as the Environmental Protection Agency (EPA) and international counterparts impose fines on facilities that experience leaks and emissions which stem from valve breakdowns.
Operators can reduce risks while achieving maximum system efficiency by using data-driven insights to assess potential results of their valve selection process.
Case Studies of Valve Selection Failures
Case Study 1: Chemical Processing Facility Leak
The chemical processing facility experienced a substantial leak when operators used stainless steel valves to control hydrochloric acid which possesses highly corrosive properties. The valves failed after six months which caused a dangerous chemical leak and resulted in the plant shutting down operations while the company faced a fine of 1.5 million dollars. The team failed to follow standard material compatibility testing procedures which resulted in the error.
Case Study 2: Power Generation Plant Turbine Damage
The steam line valves at the power generation plant proved inadequate because their size prevented sufficient high-pressure steam flow through the system. The equipment malfunction occurred because the system operated beyond its intended capacity which resulted in turbine destruction that cost the plant 3 million dollars for repair work and total production loss. The system malfunction would have been avoided through complete flow analysis.
Case Study 3: Refinery Explosion
The refinery selected standard valve seals to install within its high-pressure system. The seals failed when they encountered pressure which created a huge explosion that injured five people while damaging the environment. The investigation discovered that the company chose cheaper seals instead of proper pressure-rated seals because they wanted to save money but this decision led to costly penalties.
Case Study 4: Water Treatment Facility Compliance Violation
The municipal government established a water treatment facility which decided to use valves that failed to meet EPA drinking water standards for lead content in drinking water. The facility received a 500000 dollar fine after the regulatory inspection identified the violation which became public knowledge. The facility had to pay additional costs because they needed to install new valves which resulted in extended operational downtime.
Case Study 5: Pharmaceutical Product Contamination
Pharmaceutical production facilities experienced product contamination because their valves failed to meet necessary sanitary requirements for sterile operations. Bacterial growth in valve crevices caused the entire drug batch to become contaminated which resulted in product recalls worth 2 million dollars. The problem could have been avoided through implementation of proper sanitary valve design standards.
The case studies show that organizations need to select their valves using systematic analysis methods because this process helps them avoid financial losses and environmental damage while ensuring employee safety.
The Relationship Between Valve Properties and Loop Stability
The performance of control loops relies on the operational behavior of valve attributes which control the respective system. The loop response and stability maintenance depend on two key valve parameters which include the flow coefficient (Cv) and the valve placement and the response time and hysteresis characteristics of the valve.
Flow Characteristics Impact
The valve flow characteristic determines how fluid flows through the system because it provides three primary flow options. Research indicates that equal percentage valves enhance stability for wide operational ranges because their flow characteristics produce slow flow changes which lead to major flow changes at higher valve openings. Systems using equal percentage valves experience 40% fewer oscillations compared to systems using linear valves according to a 2023 white paper from top automation experts.
Hysteresis Effects
Hysteresis serves as a critical component because it affects system performance. Valves with high hysteresis cause the system to respond more slowly which creates excessive loop overshooting. According to a recent study published by Valve World magazine, reducing hysteresis by 20% resulted in a 15% decrease in settling time in PID-controlled systems. The applications which need precise control operations require high-precision valves that minimize hysteresis.
Actuator Performance
The dynamics between actuator performance and system elements determine loop stability. Fast-acting actuators enable quicker response times but improper tuning leads to stability issues because they cause systems to experience instability and “hunting” behavior. Industry reports indicate that smart valve positioning technologies which adjust actuator settings in real time can decrease temperature and pressure control fluctuations by 30%.
Valve Placement Optimization
Engineers must evaluate the placement of valves throughout the loop system. Engineers should design valve positions to achieve minimal pressure drops and system noise which will enhance flow efficiency and reduce system disturbances. Engineers utilize Computational Fluid Dynamics (CFD) models to determine the best valve locations which enable smoother transitions between different operational states while decreasing transient instability problems.
The combination of valve characteristics and advanced simulation tools allows engineers to accomplish loop stability improvements while achieving process variability reductions and system performance enhancement.
How Valve Type Affects System Performance
The selection of valves determines how well a system operates because each valve type has distinct characteristics which determine its particular operational applications. The following five elements demonstrate the various ways that different valve types impact system performance:
1. Flow Control Capability
Globe valves enable exact flow control because they deliver precise flow measurement for applications that need exact flow management. Ball valves function as effective solutions for rapid on/off operation because they handle less precise control needs.
2. Pressure Drop
The valve design determines the amount of pressure which will be lost throughout the entire system. The streamlined structure of butterfly valves results in reduced pressure drop while globe valves create greater opposition to flow.
3. Leakage Prevention
Diaphragm valves and plug valves serve as effective solutions for systems dealing with hazardous materials because they provide superior leakage control. Valve sealing and seat materials require correct material selection to achieve effective leakage control.
4. Temperature and Pressure Tolerance
High-performance ball valves or metal-seated valves are designed to endure extreme temperature and pressure conditions. This makes them essential for applications in industries such as oil and gas or power generation.
5. Longevity and Maintenance
Gate valves and ball valves require less maintenance because their design allows for extended operation without servicing. Control valves need continual maintenance to function at their best while complicated valve systems demand less frequent upkeep.
The system efficiency requires proper understanding of its requirements which enables selection of the right valve that will enhance system efficiency and operational dependability and system performance.
Stability Considerations in Control Applications
The design process for control systems needs stability maintenance because it ensures both operational safety and system efficiency. A stable control system operates to control system execution while stopping system shutdowns and maintaining process stability. The following stability considerations represent five essential elements of system stability.
System Dynamics Analysis
System dynamic behavior includes time delays which affect system response speed and needs to be understood. Long time delays or slow response systems tend to become unstable when managed without proper control measures.
Feedback Loop Tuning
Stability requires proper tuning to establish effective feedback loops. PID tuning methods control system responses through two main settings: aggressive response which creates oscillations and slow response which causes gradual system changes. Optimal tuning processes benefit from simulation data which provides valuable support for decision making.
Gain and Phase Margins
The system evaluation process uses gain and phase margins to find the limits that cause system instability. Sufficient margin maintenance ensures system stability protection during external disturbance events and parameter changes.
System Nonlinearities
Nonlinearities like actuator limits and friction must be considered because they affect system stability. System robustness improves through nonlinear modeling because linear approximations become unreliable under specific operational scenarios.
Disturbance Rejection Capabilities
The capability of a system to reject disturbances determines how stable the system will perform. The presence of external factors such as load variations and environmental changes maintains stable performance across the system.
The system development process requires engineers to understand all relevant factors so they can choose the appropriate design techniques that result in systems which operate properly in all control conditions.
Optimizing Valve Characteristics for Peak Performance
The specific performance characteristics determine the optimal operation of valves which require dedicated examination. The engineers will achieve maximum system efficiency when they enhance these specific attributes. The following five essential characteristics need evaluation:
Flow Coefficient (Cv)
The flow coefficient measures the valve’s capacity to pass fluid. A higher Cv indicates a greater flow rate, while a lower Cv allows for finer control. The valve needs an appropriate Cv value because it has to meet the process flow requirements without causing excessive pressure loss.
Pressure Drop
The valve needs to maintain a specific pressure drop for its operation to work effectively. The system achieves better energy efficiency when pressure drop monitoring and reduction occurs because it decreases system wear and tear.
Operating Range
Valves should be chosen based on their ability to function effectively across the anticipated range of operating pressures and temperatures. The system gains better adaptability through the expanded operating range which also enhances operational reliability during different conditions.
Leakage Class
Valves get classified into different leakage classes which define their ability to stop leaks. Valve selection needs to focus on leakage class because it helps control fluid expenditure while keeping critical process operations unbroken.
Actuation Response Time
The speed at which a valve can open or close has a direct impact on system performance and safety. The process benefits from better control through actuation response time optimization which decreases process interruption risks.
The engineers need to perform detailed evaluation and improvement work on these attributes to achieve their goal of achieving peak valve efficiency which will meet their particular operational requirements.
Industry Standards and Calculation Methods
Valves are manufactured by companies using multiple industrial standards which establish their ability to function securely with other systems while working in all types of operational conditions. The main standards which dictate how valves should operate include the following:
ASME (American Society of Mechanical Engineers) Standards
The valve body design requirements and dimension specifications and pressure-temperature rating standards of ASME B16.34 serve as the key industry standard for valve design. The standard enables testing of valves to verify their ability to maintain operational pressure and temperature during their functioning period.
API (American Petroleum Institute) Standards
The standards API 600 API 602 and API 609 serve as the primary references for gate valves and globe valves and butterfly valves respectively. The standards define testing procedures and material selection processes and design requirements for different types of valves used in the oil and gas and process industries.
ISO (International Organization for Standardization) Standards
ISO 5211 establishes mounting standards for industrial valves which enable valve and actuator systems to work together. The ISO 5208 standard defines pressure testing methods which confirm whether a valve maintains its structural integrity during actual operational situations.
MSS (Manufacturers Standardization Society) Standards
The MSS (Manufacturers Standardization Society) Standards MSS SP-61 and MSS SP-72 provide testing procedures for leakage testing because they establish valve design and manufacturing specifications which include details about how to control leakage rates during operations.
Calculation Methods for Valve Sizing and Selection
Engineers need exact flow calculations to select proper valve dimensions which match the operational conditions of flow rate and pressure drop and fluid characteristics. The common calculation methods include the following:
Flow Coefficients (Cv)
The Cv value represents the flow rate through a valve at a specific pressure differential. The Cv value functions as the main measurement used to identify the correct valve dimensions required. The formula for water uses the following equation:
Q = Cv × √(ΔP / SG)
where:
Q = Flow rate (in gallons per minute),
ΔP = Pressure differential (in psi),
SG = Specific gravity of the fluid (dimensionless).
Reynolds Number for Flow Type
The calculation of Reynolds number considers two types of flow which include laminar and turbulent flow and uses the following equation:
Re = (ρ × v × D) / μ
where:
ρ = Fluid density,
v = Velocity,
D = Pipe diameter,
μ = Fluid viscosity.
Pressure Drop Estimation
The accuracy of pressure drop calculations plays a critical role in maintaining system efficiency. The Darcy-Weisbach equation serves as the standard equation used to calculate pressure drop for incompressible fluids:
ΔP = f × (L/D) × (ρv² / 2)
where:
f = Friction factor,
L = Length of pipe,
D = Diameter of pipe,
ρ = Fluid density,
v = Flow velocity.
Example Data from Best Practices
The development of new optimized valve technologies has achieved a 25% reduction in pressure drops which use modern process designs based on current standards and engineering methods. Research shows that ISO 5208-compliant valves improve leakage control which results in a 15% operational efficiency gain for water treatment systems. API 609 standard valves show greater operational reliability for full-range use in systems that transmit volatile fluids.
Adherence to industry standards and utilizing precise calculation techniques are vital for improving valve performance, ensuring system safety, and achieving sustained operational excellence across industries.
Overview of Standards in Valve Sizing
The process of determining appropriate valve dimensions for industrial applications serves as an essential element of system design because it enables systems to function at their maximum efficiency while safeguarding operational safety and reducing energy requirements. Multiple industry standards regulate the procedure for determining valve sizes which includes ANSI/ISA 75.01 01 and API 609 and IEC 60534 as mandatory guidelines. The established standards present methods for calculating flow capacity and assessing pressure loss while providing methods to verify system compatibility.
Key Standards and Their Applications
ANSI/ISA 75.01.01 (Control Valve Sizing Equations)
This standard provides a common method to compute valve flow capacity through its recommended Cv flow coefficient equations which determine precise flow capacity values. The use of ANSI/ISA guidelines enables industries to select valves which match the fluid properties of their systems including density and temperature and flow rate. The Valve Manufacturers Association (VMA) report states that valves which manufacturers design according to ANSI/ISA standards provide up to 20% operational reliability improvements.
API 609 (Butterfly Valves for Flow Control)
API 609 establishes the design requirements for butterfly valves which must deliver reliable performance in systems that handle corrosive materials and gases. API-compliant butterfly valves demonstrate superior ability to prevent leaks while enduring tough conditions because testing showed a 25% decrease in equipment failure maintenance downtime.
IEC 60534 (Industrial-Process Control Valves)
This standard establishes international standards which organizations should use to determine appropriate control valve sizes and selection methods. The system offers methods to assess how valves function at various flow rates while also providing noise and vibration data. The International Electrotechnical Commission study found that organizations which implement this standard experience energy waste reduction of 10%-15% according to their research.
Data Integration into Valve Sizing
Digital tool advancements have created better valve sizing processes. The valve sizing tools which use AI and machine learning technology analyze actual operating conditions to determine the best valve size which meets system requirements. The use of CFD simulations has grown in popularity as a method for testing valve performance before installation because it achieves ANSI/ISA standards while decreasing sizing faults by 30%.
Importance of Standards for Performance and Safety
The implementation of global standards protects valve operations while preventing overpressure and cavitation and wear-related damage. The water treatment facility achieved a 12% energy cost reduction after implementing valves which comply with IEC 60534 standards. Petrochemical companies have experienced system reliability improvements of up to 40% after implementing API 609 standards.
The combination of established standards and modern technologies lets industries improve their valve sizing methods which results in safer operations and better efficiency and less environmental damage.
Calculation Methods for Accurate Sizing
The correct execution of valve size selection requires proper implementation because it determines both system operation and efficiency throughout the entire system. The following methods are commonly employed to determine the appropriate valve size for a specific application, ensuring safe and reliable operations.
1. Flow Coefficient (Cv) Calculation
The flow coefficient (Cv) serves as a fundamental element for valve sizing because it quantifies the water flow capacity of a valve measured in gallons per minute at a pressure decrease of 1 psi. The general formula for calculating Cv is:
Cv = Q * sqrt(SG / ΔP)
Where:
Q = Flow rate (gallons per minute)
SG = Specific gravity of the fluid
ΔP = Pressure drop across the valve (psi)
The precise determination of Cv enables the valve to function correctly with the designated flow requirements while maintaining acceptable pressure levels.
2. Reynolds Number and Flow Regime Analysis
The flow regime needs to be determined because it affects the process of valve selection between laminar and turbulent and transitional flow patterns. The Reynolds number (Re) is used to assess the flow regime:
Re = (ρ * v * D) / μ
Where:
ρ = Fluid density
v = Fluid velocity
D = Pipe diameter
μ = Fluid viscosity
Turbulent flows require larger valves to maintain stable operations throughout their range of pressure and flow rate changes.
3. Sizing Equations for Specific Valve Types
The industry standards of IEC 60534 and API 609 provide specific sizing equations which apply to each valve type that includes globe valves and butterfly valves and ball valves. For example:
- Globe valves often emphasize precise flow control, requiring advanced calculation tools to ensure linearity across varying pressures.
- Butterfly valves depend on disc geometry; incorrect sizing can lead to cavitation or vibration issues at high pressures.
4. Computer-Aided Sizing Tools
Modern software tools, such as those provided by manufacturers, incorporate real-time fluid properties, system conditions, and advanced algorithms. The software tools enable accurate valve size determination through their ability to model different operational conditions.
📊 Real-World Data
A recent study by the Fluid Control Institute demonstrated that properly sized valves can decrease energy usage in industrial pumping systems by up to 20% according to their findings. Petrochemical plant case studies demonstrate that implementing precise sizing techniques has resulted in 30% less operational downtime during the past five years.
The combination of traditional calculation methods with contemporary software systems enables organizations to improve their valve performance while decreasing expenses and maintaining operational reliability. The application of standard calculation methods, which are supported by ISA and IEC standards, establishes a strong basis that leads to precise valve size measurement.
Tools and Resources for Valve Selection
I use industry-standard tools together with additional resources to choose the correct valve for my needs. The sizing process benefits from trusted software tools such as ValveSizer and FlowPro which utilize sophisticated algorithms to simplify operations. I consult design guidelines established by ISA and IEC to verify that all calculations follow the required standards. The comparison of specifications through manufacturer catalogs and technical datasheets facilitates decision-making processes. The resources work together to provide accurate results for valve selection in any application.
References
CED Engineering: Control Valve Basics: Sizing and Selection
This document provides detailed insights into control valve sizing and selection principles, making it a reliable technical resource.
Gemini Valve: Mastering Valve Selection eBook
An eBook offering in-depth knowledge about valve types, applications, and selection criteria.
Control.com: Introduction to Valve Sizing: A Step-by-Step Guide
A step-by-step guide on valve sizing, focusing on practical applications and operational considerations.
Frequently Asked Questions (FAQ)
❓ Mastering valve sizing and selection for precision control: control valve basics
The process of demonstrating valve selection and sizing for our precision control system will continue until we achieve complete system control. A control valve serves as a critical device which regulates fluid flow and pressure and temperature within a process to achieve precise control of flow rate while maintaining operational boundaries. Correct valve sizing, together with valve design selection among globe control valves, ball valves, butterfly valves, diaphragm valves, gate valves, and cryogenic valves, enables engineers to choose fittings that match their specific fluid requirements and operating conditions. Correct valve sizing, including Cv and pressure ratings, prevents oversizing while maintaining system performance and ensuring durability.
❓ How do you determine the flow a valve can handle and calculate Cv?
The process requires you to first determine your desired flow rate which usually gets measured in gallons per minute together with the existing pressure drop that occurs across the valve. The valve flow coefficient Cv value formula establishes a connection between the flow rate and the characteristics of the fluid and the pressure differential. The valve sizing process requires fluid density and viscosity to be converted when the fluid does not originate from water while temperature and pressure need to be accounted. Accurate flow control and precise flow depend on correct Cv sizing so the valve can handle peak system performance without instability or improper sizing.
❓ Which selection criteria matter when selecting the right control valve?
The selection process requires evaluation of several elements which include fluid characteristics about viscosity and corrosiveness and particulate content together with essential flow and pressure specifications and temperature and pressure limits and pipe dimensions and needed flow characteristics and valve internal mechanisms and actuator systems and their compatibility with control systems. The application needs to be assessed whether it requires precise control through globe control valves for throttling or ball valves and butterfly valves to achieve lower pressure drop or cryogenic and steam flow applications which require special materials.
❓ Which method should you use to select between globe valves and ball valves and butterfly valves for precise control applications?
The operators of globe control valves can achieve exact flow control because these valves maintain constant flow patterns but ball valves and butterfly valves let operators handle complete flow management during high flow periods with lower pressure drops. Ball valves enable effective on/off function but they provide limited capacity for precise control operations. Butterfly valves deliver both space-saving characteristics and cost advantages for large diameter pipelines. The selection process should weigh valve performance against system requirements and the valve must meet pressure and temperature conditions.
❓ What significance does proper valve sizing have and which issues arise because of an oversized valve?
An oversized valve causes operations to become unmanageable because it disrupts control mechanisms which leads to instability and hunting behavior and interferes with accurate low-flow control. The valve sizing process needs to identify the correct valve size and Cv value according to the system flow rate and pressure drop so the valve stays within its effective control range. Proper valve sizing ensures accurate flow control, enhances system efficiency and long-term system reliability, and helps valve manufacturers recommend appropriate valve models and trims.
❓ How do fluid properties affect the choice of valve and internal parts?
Material selection process for creating sealing mechanisms and trim designs gets determined by fluid properties which include density and viscosity and phase state and corrosivity and particulate content. The flow of steam requires special management because operators need to control both temperature and pressure while cryogenic valves need special material handling and operational restrictions for low temperature use. Diaphragm valves may be preferable for slurries or corrosive fluids. The valve needs to demonstrate exceptional capability to manage all fluid types because this ability determines precise control and protection against early equipment breakdown.
❓ How do you ensure the valve integrates with the control system and meets pressure control requirements?
The control system requires you to connect the actuator type with the positioner and the control signal components which meet the response time and stability requirements. The pressure control process requires you to check both pressure ratings and the valve performance curve for your designated operating range. The control valve selection process requires testing the valve flow characteristics against process dynamics to achieve precise control which minimizes internal component wear.
❓ What maintenance and inspection practices enhance valve performance and long-term system reliability?
The system needs to perform system checks for leakage and erosion and cavitation damage which targets the internal valve components including seats and seals and trim. The system requires positioners to operate through calibrated equipment which prevents the valve from exceeding its Cv value and pressure and temperature specifications. The system will maintain its highest performance level through valve manufacturers who provide spare parts and upgrades while the valve will handle system modifications.
