Heat Meters (BTU Meters): Thermal Energy Measurement Guide
A more advanced version of the world will also enter the energy savings issue, one of the components being measurement and control of thermal energy. This may be your role if you deal with correct designing of air-conditioning systems for commercial buildings, improving energy efficiency in residential buildings or providing up-to-date information on heating networks within a particular field of economy. For instance, it can be heat meters or Bru heaters as some refer to them which will come in handy in all the above instances. The purpose of this series is to introduce readers to the issues concerning heat meter. To tackle such issues, let us see what a heat meter is, what is its aim and also who uses it and for what purposes. Also, I will go into detail on how a heat meter supports the concepts of green energy.

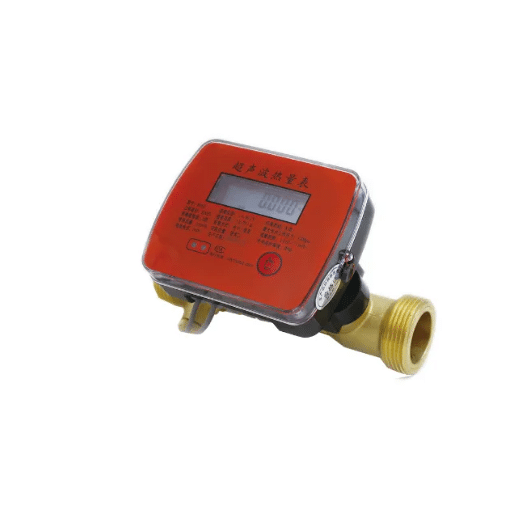

Understanding Heat Meters
A heat meter is beneficial in controlling the excessive cost that may users pay while taking heat. Such instruments work in the installation pipes, such as heating or cooling systems. Heat meters are based on the working principle of the difference in temperature between the two pipes, measuring the temperature change between the inflowing and outflowing pipes, and the volume of the flowing liquid in the system is computed by the measurements. The established measurements allow for managing energy consumption and ensuring that households, companies or industries, are charged correctly.
Definition and Purpose of Heat Meters
What does a heat meter mean? In every practical heating and cooling framework, a heat meter is employed that accurately measures the amount of thermal energy in use, not more, not less. In this case, it is determined by the temperature difference between the flow and the return pipes of a system and the system’s fluid volumetric flowrate.
The combination of these two parameters allows for better accuracy in measuring the actual energy consumption, which is vital for fair allocation and calculation of individual bills for homes, commercial or industrial establishments. Thus, the application of a heat meter in all the cases is unavoidable.
💡 Key Industry Insight
Sources from within the industry have disclosed heat meter tech advances in ‘upgrading’ heat meters to more efficient ones using complex sensor networks and technologies. These meters are based on either ultrasonic or mechanical principle of flow rate measurement and record heat monitoring processes very precisely by digital temperature sensors. The Demand for ultrasonic heat meter has increased owing to its easy and non-incursive modernization over time.
📊 Statistical Impact
Based on the data from Euroheat & Power, the installation of heat meters in the heating systems of European Union countries has been one of the significant factors contributing towards the reduction of energy use in a responsible manner. It has been before minimizing carbon emissions to the atmosphere and other energy saving objectives that are being achieved by 2030 and later.
How BTU Meters Work
An appliance used in determining heat consumption in heating and cooling systems is referred to as a heat meter. It determines in British Thermal Units (BTU) the heat energy consumed during operation of any heating or cooling system. There are three primary components in the system: rate of fluid flow, change in temperature between supple and return line, and enthalpy of fluid. Such instrument consists of, generally, three basic parts:
🔄 Flow Sensors
To precisely quantify the fluid that go through in terms of volume or mass, a flow sensor is used. Consider a heat meter. Various measuring techniques such as ultrasonic, turbine, and electromagnetic flow measurements are present in the sensor.
Accuracy: Modern BTU meters with ultrasonic sensors provide accuracy of ±1%
🌡️ Temperature Sensors
There will be heat meter sensors installed both in the supply and return pipeline. The temperature sensors in these meters will measure the temperature differences between these two.
Precision: High-precision temperature sensors deliver 0.2°F resolution
🧮 Computing Device
The calculating unit was designed to function with the information supplied by flow and temperature sensors. There is a formula for the calculation of energy, considering that:
Q = V × ΔT × K
Where Q = energy used, V = volume/mass, ΔT = temperature differential, K = heat capacity
🚀 Advanced Features of Modern BTU Meters
- Real-time Transmission of Data: The functionality of transmitting data instantaneously
- This would include IoT: The ability to integrate completely into any Internet of Things system
- System used for Energy purposes: This may be necessary to co-operate in the context of the building automation.
- Saving Energy: There are reports which indicate that a device has potential working in between 5-20% less on energy usage
- Current Estimation: Warning occurs of energy inefficiencies as soon as they occur
- End-users use different types of equipment, starting from the simple ones used to control heat meter
Types of BTU Meters
There are many types of BTU meters, differences of which exist because these meters are used for various purposes and functions. Knowing these types of meters ensures that the proper meter is chosen for a given application.
1
Mechanical BTU Meters
Mechanical heat meters are equipped with turbines or impellers to measure the flow of a liquid. These types of devices are affordable; however, they are well suited for the conventional heating or cooling system.
✓ Pros: Economical as well as low, best for small-scale use
✗ Cons: Moving parts need frequent servicing, there are problems with dirt and other particles in the liquid
Applications: Homes and small business premises
Frozen keywords and phrases list:
heat meter
2
Ultrasonic BTU Meters
Ultrasonic BTU meters are retained as a revolutionary approach of measuring the heat and energy consumption with no moving parts. As a result, the frequency of maintenance intervals of these meters is reduced. Their growth is overwhelming at a CAGR of 17 percent.
✓ Pros: absence of moving parts, accuracy, maintenance-free, durability
✓ Increase Rate: 17% per year
Ideal For: High volume applications, intelligent systems, production installations
The choice of heat meter is dependent on the volume and size of the building.
3
Electromagnetic BTU Meters
Electromagnetic BTU meters operate using the principle of magnetic induction to measure the flow of conductive substances. Thanks to this attribute they are more accurate than other types of meters and perform better.
✓ Advantages: Highly accurate and perform better, efficient for conductive applicators
Best For: Central chilling and industrial usage,
Market Trend: Prevalence of these devices is higher where energy usage is strictly controlled
4
Smart BTU Meters
Introduction of Internet of Things technology brings smart heat meter to a whole new level of possibilities, such as the addition of real time tracking, remote management, predictive analysis etc.
✓ Highlights: Ability for real time tracking of data, remote control, possibilities of predictive analytics
💰 Savings: reduction of cost by approximately 25%
Most Useful In: Green building, smart city, reduction of c02 emissions
Applications of BTU Meters
A BTU Meter has a Darling license to operate even at Areas where it is not Required.
🏠 Residential Heating & Cooling
Also referred to as BTU meters, this is one of the ways households and firms imposing these payments can be able to control if not eliminate wastage due to electricity usage for heating or cooling.
🏢 Centralized Energy Schemes
Meters are provided with saddles or between a separate zone in respect to installed heating structures so as to capture thermal energy distribution for proper billing purposes.
🏭 Industrial & Manufacturing
To control and manage production costs, quilting meters monitor and capture the data on energy allocated for the available machines. These actions are aimed at enhancing the efficiency and productivity in an organization.
♻️ Renewable Energy Systems
You cannot do without a heat meter in geothermal and solar-thermal systems as it is used for checking the amount of energy consumed in those systems for a particular period of time and for determining how efficient they are.
🏗️ Smart Building Automation
Within the framework of smart building control solutions, the use of heat meters promotes the implementation of energy-saving mechanisms since such technologies collect and provide full reports in addition to calculating the energy consumed.
Industries Utilizing BTU Meters
BTU meters are indispensable across multiple industries as essential tools to account for and manage energy resources effectively.
Case Studies in Thermal Energy Measurement
Real-world implementations demonstrate the tangible benefits of BTU meter installation across various sectors.
📍 Office Buildings in Urban Areas (New York City)
18%
Annual Energy Reduction
$200K
Annual Savings
Implementation: Large office complexes introduced BTU meters for HVAC system management, enabling continuous monitoring of thermal energy consumption while reducing environmental impact.
📍 District Cooling System (Singapore)
15%
Energy Waste Reduction
Fairer Billing
Improved Cost Structure
Implementation: BTU metering enabled accurate measurement and distribution of energy consumption across various buildings, enhancing system efficiency and supporting the city’s sustainability agenda.
📍 University Campus (California)
20%
Efficiency Improvement
1M+ Gallons
Water Conserved Annually
Implementation: Heat meters installed in the chilled water cooling system enabled optimal adjustments based on performance data, significantly improving energy and water efficiency.
📍 Manufacturing Plant (Germany)
12%
Energy Cost Reduction
Year 1
ROI Achievement
Implementation: Heat meters in process cooling systems provided advanced energy analytics, enabling performance optimization and waste reduction within the first year of operation.
📍 Hospital (United Kingdom)
10%
Energy Reduction
£75K
Annual Savings
Implementation: Heat meters in heating and cooling equipment maintained temperature-sensitive patient care environments while enhancing system reliability and meeting NHS sustainability targets.
Benefits of Using BTU Meters
Benefits for Chilled Water Systems
🎯 Key Advantages of BTU Meters in Chilled Water Applications
✅ Accurate Power Usage Measurement
Incorporates fluid flow rate and temperature change measurements to easily and precisely determine power usage and in what places inappropriate elements making the use of too much energy is of concern.
⚙️ Improved System Operation
Existence provides means to monitor and regulates the equipment when in use, improving overall function without compromising the cooling efficiency.
💰 Cost Efficiency
Considerable reduction of energy cost up to 15% is attainable by energy management optimization and improved chilled water system operations.
♻️ Sustainability Compliance
Contribute to gases emissions and carbon content reduction targets, thanks to the presence of a heat meter and also its application.
🔧 Preventive Maintenance
Skills in detecting different flow configurations and temperature alterations in advance helps undertake maintenance activities doomed to help prevent future complications and spare production losses.
General Benefits of BTU Energy Measurement
Energy Efficiency and Cost Savings
💡 Energy Efficiency Impact Statistics
Department of Energy, improvements in the field of energy efficiency can cut energy expenditure by up to 30%, thereby notably minimizing operational expenses. Any buildings which have high-efficient HVAC and proper insulation together with heat meters generally see a huge amount of money saved each year, amounting to hundreds if not thousands.
$580 Billion
Global energy cost savings from efficiency improvements (2016-2021)
Source: International Energy Agency (IEA)
Up to 30%
Potential energy savings through efficiency improvements
Source: U.S. Department of Energy
20% Increase
Monitoring efficiency improvement with IoT-enabled BTU meters vs. conventional systems
Advanced Technology Impact
Improving Energy Monitoring with BTU Meters
The BTU meter is employed to measure the quantity of thermal energy that has been used after consumption of cool or hot water or HVAC systems in British Thermal Units (BTUs), thereby permitting the optimized use of chilled or hot water systems. This includes tracking and monitoring energy changes which can in turn be used for changes that improve the effectiveness of plant operations.
🚀 Advanced Technology Integration
The latest BTU meters incorporate advanced sensors and display units that are more resistant to wear and tear. Internet-of-Things wiring allows the user to check the energy usage on a remote facility, which studies indicate has up to a 20% increase in management efficiency as compared to the traditional counterparts hence promoting proper usage of resources.
💰 Optimization Results
HVAC systems with a heat meter for proper metering have reported reductions in energy utilization by up to 25% which means an improvement in heating and cooling of the house dependent on changes made or the type of system. These devices are being increasingly acquired by institutions in an attempt to regulate their environment with lower expenditures.
Impact on HVAC System Performance
The BTU meter significantly promotes efficient use of HVAC systems. By showing the amount of energy consumed, and the systems involved in thermodynamic processes, controlling the systems becomes easier and planning suitable actions for the systems management is operative.
📈 Improved Performance
Continuous Energy Utilization monitoring is premised on urging for more action than the ordinary energy econometric approach since it has more benefits since inefficiency is identified at real time and fixed immediately.
🔧 Better Maintenance Planning
Temperature and fluid heat meters have thresholds beyond which certain levels are an indication of a problem like wear and tear or energy inefficiency, therefore ensuring an averting measure is in place before the equipment is compromised.
💵 Cutting Down Energy Expenses
Energy management in consumption basing centers allows tackling priority expenses effectively while then avoiding unnecessary costs such consumption reimbursement of facilities.
⚖️ Workload Distribution
Heat meters or BTUs are installed in both the supply and the return piping of the systems component. Analytics of these meters is conducted in whole units installed outside of these systems, often called sub-metering.
📋 Regulatory Compliance
Heat meter measurements allow heating (and other energy-consuming devices) in the proper, more efficient amounts and aid energy users in disclambering their energy consumption by reporting it to quantifiable levels.
Selecting the Right BTU Meter: A Comprehensive Guide
Heat meters are proposed to measure installed energy in energy balance systems, such as heating and cooling purposes. Because they are used in system optimization, selecting an appropriate heat meter for your facility is important. Heat meters selection process involves several steps which if overlooked may lead to wrong decisions and explanation of optimistic results.
Outline of this Module: This Module aims to provide start to end knowledge of everything related to Btu Meters, its division aspects, how they are choosen selection aspects of these devices, the installation and also the repair and working maintenance of such a device. Still when you seek to install new or upgrade the processes, you will find this very source helps to improve those energy management workforce levels which this text intends to resolve.
Classification of BTU Meters
There are two major types of BTU meters available in the market, each with distinct characteristics and applications:
Mechanical BTU Meters
Features:
- Inline meters with moving parts
- Direct flow measurement mechanism
- Lower initial investment cost
Considerations:
- Subject to wear over time
- Requires regular maintenance
- Constant calibration needed
Ultrasonic BTU Meters
Features:
- Sound wave technology for measurement
- No moving parts or friction
- High precision and accuracy
Advantages:
- Minimal wear and tear
- Reduced maintenance requirements
- Extended operational lifespan
Key Selection Criteria for BTU Meters
1. Precision of Measurements
Temperature prevailing at a certain point in the ground is, perhaps, the most important feature to be judged upon in BTU meter design. The ultrasonic meters have a much better degree of accuracy than their mechanical counterparts while the measurement devices can reach the ±1% level of precision. This improves the accuracy of measurements, decreases the possibility of conflicts in the bills and most importantly improves assessment of energy loads which is always favourable for energy management.
2. System Compatibility
Make sure the heat meter you select is compatible with the piping system and equipment present in the facility. However, with the wave of improvement in meters, they the ones available for sale support a wide range of pipes in terms of length and diameter, with sophisticated temperature probes available for all kinds of applications without a hassling installation.
3. Communication Protocols
Most heat meters come equipped with communication modules, allowing them to work with communication protocols such as Modbus, BACnet, M-Bus with regard to BMS as well as wireless communication.
4. Installation Complexity
The application characteristics should dictate if a clamp-on meter or inline design will function best for the application. One of the significant advantages of using the ultrasonic clamp-on type BTU meter is that it can be installed without breaking the pipe.
5. Regulatory Compliance
Find a suitable one that is verified for use in installations and systems according to those in the relevant country, such as Sweden Iso 4064,Explosives Ordinance Nº3,BBIS 3936oribe 3430 and calibrate your appliances in accordance with it.
6. Cost-Benefit Analysis
Although ultrasonic meters are generally more expensive when compared with mechanical meters, they are more long-lasting, require less upkeep and are more accurate. Subsequently, these benefits bring about a quick payback or lesser costs of owning them.
Industry Insights
Commercial and Industrial sectors have come to appreciate the need and the effectiveness of ultrasonic BTU meters. Based on a report published in 2023 about energy monitoring practices, 68% of facility managers have converted to beat meters, durability and easy communication with IoT devices among other factors.
Market Numbers: In 2022, the global BTU market size was worth US$ 750 million and is expected to grow at a CAGR of 6.5% from 2022 to 2030. This is mainly due to the fuel-saving device rising demands among the economic concerns and the government actions towards energy efficient appliances.
Essential Factors in Meter Selection
When choosing a BTU heat meter, attention to detail ensures proper functioning and optimal fit for your specific application. Consider these critical factors:
| Factor | Considerations | Specifications |
|---|---|---|
| Accuracy | Critical for energy management and billing | Select meters offering ±1-2% precision |
| Measurement Technology | Different technologies suit different applications | Ultrasonic, electromagnetic, or mechanical |
| Operating Temperature Range | Must match system requirements | -20°C to 150°C for high-performance models |
| Integration Protocols | Seamless BMS integration | BACnet, Modbus, M-bus compatibility |
| Durability | Long-term reliability in harsh conditions | IP-rated casings, heavy-duty materials |
💡 Pro Tip: Ultrasonic flow meters achieve the highest accuracy and are maintenance-free, while mechanical flow meters are more economical but require continuous upkeep. Choose based on your long-term operational priorities and budget considerations.
BTU Meter Installation: Best Practices
Proper installation is crucial for accurate measurements and optimal meter performance. Follow these essential guidelines:
✓ Installation Checklist
1. Select the Optimal Position
Mount BTU meters in locations that ensure accurate flow and temperature differential readings. Ideal positions include:
- Straight pipe sections free from turbulence
- Areas away from bends, valves, and pumps
- Locations with stable flow characteristics
2. Prepare Pipe Surfaces
Prior to installation, ensure pipes are thoroughly cleaned:
- Remove rust, scale, and debris
- Inspect internal surfaces for smoothness
- Eliminate any obstructions affecting sensor readings or water flow
3. Follow Manufacturer Guidelines
Always reference installation instructions provided by the manufacturer:
- Review mounting specifications and requirements
- Follow recommended clearances and orientations
- Ensure compliance to maintain warranty coverage
4. Integrate with Existing Systems
Connect the meter to your Building Management System (BMS) or energy monitoring platforms:
- Verify communication protocol compatibility
- Configure data transmission settings
- Test connectivity before finalizing installation
5. Perform Calibration Checks
After installation, conduct thorough testing:
- Verify meter calibration and accuracy
- Confirm proper BTU measurement functionality
- Examine correct assembly and address anomalies immediately
⚠️ Important: Proper installation procedures ensure smooth operation and maintain BTU heat meter effectiveness over time. Careful attention during installation prevents costly errors and maximizes system performance.
Maintenance Guidelines for Thermal Energy Meters
Regular maintenance ensures reliable operation and extends the lifespan of your thermal energy measurement equipment. Implement these essential maintenance practices:
Regular Inspections
Conduct routine checks based on manufacturer recommendations:
- Schedule periodic calibration sessions
- Monitor measurement accuracy
- Document inspection results
Sensor Cleaning
Keep sensors clean for optimal performance:
- Clean temperature sensors regularly
- Remove accumulated deposits
- Verify sensor positioning accuracy
Component Inspection
Identify and address wear issues promptly:
- Check for damaged components
- Replace worn parts as needed
- Assess overall system integrity
Performance Monitoring
Track meter performance consistently:
- Compare readings to expected values
- Identify measurement discrepancies
- Implement corrective measures promptly
Maintenance: If you take the time to look after and maintain your instruments, you can greatly extend their serviceable period and even make them work better, that is, more accurately and reliably. With regular maintenance, there is no loss of time which is not only expensive but also provides the system of consumption of energy with the right readings.
For instance, and pressure sensors. In the case of the cold water heat meter as well in case of the steam heat meters integrated in the metering station proper, refrigerant flow meters, thermocouples and thermometers are vital.
Technical Measurement Principles
Flow Meter Technologies
Different flow meter technologies serve various applications and provide unique advantages:
| Technology Type | Working Principle | Best Applications | Key Benefits |
|---|---|---|---|
| Ultrasonic | Sound waves measure flow velocity | Clean liquids, non-intrusive measurement | High accuracy, maintenance-free |
| Electromagnetic | Electromagnetic induction for conductive fluids | Conductive liquids, stable measurements | Stable over time, reliable readings |
| Vortex | Vortex shedding frequency measurement | Various industrial processes | Versatile, wide application range |
| Mechanical | Direct physical measurement with moving parts | Cost-sensitive applications | Lower initial cost, proven technology |
Complete Measurement System Components
To keep track of BTU usage, heat meter is a complex system. It comprises of three basic working elements:
1. Flow rate Meter: Mechanism used to determine how fast either liquid or gas is moving through the pipes (ultrasonic, electromagnetic, mechanical or similar technology)
2. Temperature Probes: High-precision probes are mounted on the supply and return pipes to ascertain the temperature difference
3. Data Logger: Calculating unit for the flow meter and the temperature sensors which provides the amount of energy transferred and has the ability to interface with other energy calculating devices
Understanding BTU Calculations
How BTU Energy Measurement Systems Work
BTU energy measurement systems calculate British Thermal Units by combining multiple data points:
Calculation Formula Components:
- Flow Rate: Volume or mass of fluid per unit time (recorded by flow meter)
- Specific Heat: Heat capacity of the fluid being measured
- Temperature Differential: Difference between supply and return pipeline temperatures
BTU Explanation: One British Thermal Unit (BTU) stands for the amount of heat energy needed to increase the temperature of one pound of water by one degree in Fahrenheit scale. That is the standard unit for energy employed when rating heating or cooling system’s performance copy or comparing different systems also.
View Options: Energy usage information of the latest models of meters is given either in BTU (British Thermal Unit), kilos watts hours (kWh) or joules, which helps to achieve all the reporting as well as analysis requirements as per the need and the law.
Benefits of Heat Meter Implementation
Implementing thermal energy metering provides numerous advantages for facility operators and building managers:
Key Advantages
🎯 Precise Energy Consumption Tracking
Monitor heating and cooling equipment performance in real-time, identifying consumption patterns and usage trends across different operational periods.
💰 Cost Reduction Opportunities
Identify energy waste and quantify losses, enabling targeted interventions that reduce electricity bills and operational expenses.
📊 Data-Driven Decision Making
Access comprehensive information from measuring and energy control systems, supporting informed decisions about operational changes, control strategies, and equipment upgrades.
⚡ Performance Optimization
Track thermal load and power consumption over specific periods, implementing efficiency measures that enhance overall system performance.
🌱 Sustainability Enhancement
Reduce carbon footprint through optimized energy consumption, supporting environmental goals and regulatory compliance requirements.
Reference Resources
The following authoritative sources provide additional information on BTU measurement and thermal energy systems:
- Iowa State University Extension and Outreach: Comprehensive guide on British Thermal Unit (BTU) measurements and conversions Link to PDF1.
- Dartmouth College Construction Guidelines: Operating instructions for thermal-energy meter systems and BTU meters in HVAC equipment Link to PDF2.
- Cold Climate Housing Research Center (CCHRC): Technical manual for the SYSTEM-10 BTU Meter, covering accurate energy measurement techniques Link to PDF3.
Frequently Asked Questions (FAQ)
Final Recommendations
When choosing BTU meters for your venue, consider your cost limits and engineering needs. Check all the subtleties for each type of meter Investigation should be made into the following: precision, durability, compatibility, and cost of investment. The correct equipment will enable efficient energy management which generates visible and achievable returns.
Through the use of admission criteria, guidelines for establishment and recommendations for maintenance as contained in this manual, you will be able to make your heat meter work efficiently and reliably over a long period of time.
