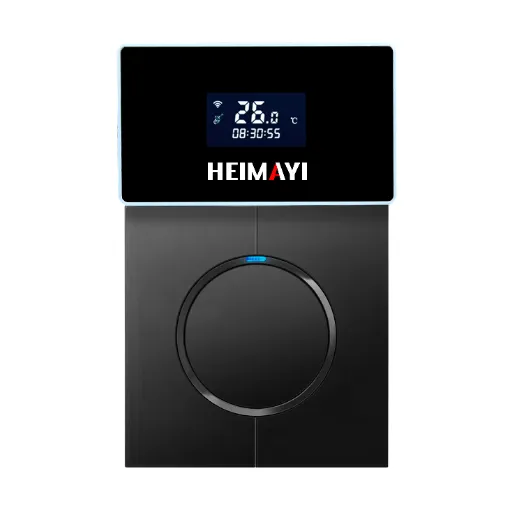

Switch Type Room Temperature Collector
The T3 Switch Backpressure Type Room Temperature Collector features temperature and humidity data acquisition and recording storage functions, with the capability to upload data to servers via low-power networks including NB-IoT/LoRa/4G Cat.1. It overcomes the maintenance challenges of wireless room temperature collectors that require annual retrieval for charging or dry battery replacement. Utilizing single live wire power supply, it eliminates the need to replace indoor switches for users, making installation more convenient. The device is compatible with various switch configurations including single-gang, double-gang, and multi-gang lighting switches. It allows configuration of data acquisition intervals, reporting cycles, and heating periods.
Key Features of The Switch Type Room Temperature Collector
🔌 Easy Installation & Compatibility
Standard 86-type switch design with single live wire power supply. Compatible with 3-200W fixtures without flickering.
⚡ Smart Power Management
Backpressure design requires no neutral wire. Built-in low battery protection prevents damage during extended non-use periods.
🎯 High Precision Monitoring
Temperature accuracy up to ±0.1℃. Sensor physically isolated from switch to eliminate heat interference from fixtures.
🔧 Versatile Configuration
Adapts to single, double, triple, and multi-gang switches. Unified wiring method requires no modification to existing setup.
💡 Intelligent Control System
Premium imported chipset ensures high stability and interference resistance, preventing automatic switching phenomena.
🔄 Convenient Maintenance
Side button for data wake-up and restart self-check. No need to replace existing user switches for quick installation.
Technical Specifications of The Switch Type Room Temperature Collector
| Item | Technical Parameters |
|---|---|
| Communication Method | NB-IoT/4G Cat.1/LoRa |
| Display Screen | LCD |
| Acquisition Interval | Default 30 minutes to 30 days, customizable |
| Temperature Accuracy | ±0.3°C (optional ±0.1°C) |
| Temperature Range | -10°C to +60°C |
| Power Supply Method | Single live wire power supply |
| Quiescent Power Consumption | ≤ 6uA |
| Load Power | Single circuit minimum load power 5W, recommended 5W-200W |
| Screen Display | Standard temperature display, customizable |
| Dimensions | 1368616mm |
Ready to Upgrade Your Temperature Monitoring?
Experience hassle-free installation and precise temperature control with our advanced switch-type room temperature collector. Contact us today to learn how our solution can optimize your heating management system.
